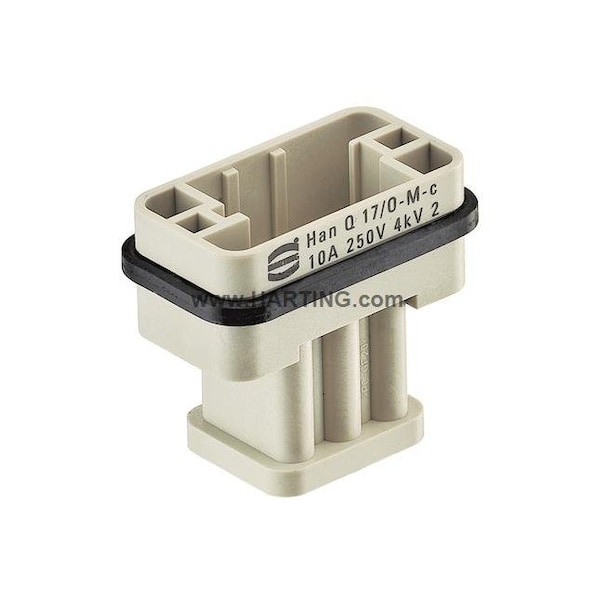

Han Q 17/0 Male Insert Crimp, PK 10
Mfr # 09120173001
Zoro # G2050359
product price: $492.99
/pk 10, $49.30/ea
Free Shipping & Returns
Key Features
Color
Pebble Gray
Insulation Material
Polycarbonate
Maximum Voltage
160 V
Current
10 A
Maximum Operating Temperature
125 Degrees C
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
09120173001
Zoro #
G2050359
UPC #
-
Country of Origin
Germany
Dimensions
Min. Single Wire Size
0.14 mm2
Max. Single Wire Size
2.5 mm2
Maximum Single Wire Size
14 AWG
Minimum Single Wire Size
26 AWG
Details
Item
Contact Insert
Color
Pebble Gray
Insulation Material
Polycarbonate
Maximum Voltage
160 V
Current
10 A
Maximum Operating Temperature
125 Degrees C
UL 94 Flammability Rating
V-0
Material
Polycarbonate
Max. Temp.
125°C
Terminal Type
Crimp
Connector Type
Male
Green Environmental Attribute
Pollution Degree 3
Standards
EN 45545-2 (2020-08); DNV GL; UL 1977 ECBT2.E235076; CSA-C22.2 No. 182.3 ECBT8.E235076
Approximate Amperage Rating - Grounding Braid
10 A
Sub-Category
Inserts
Series
Han Q
Max. Voltage
160 V
Number of Contacts
17
Current Rating
10 A
Flammability Rating
UL 94 V-0
Description
Inserts, Crimp termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 10 A, Size: Han-Compact®, Contacts: 17, Conductor cross-section: 0.14 ... 2.5 mm2
