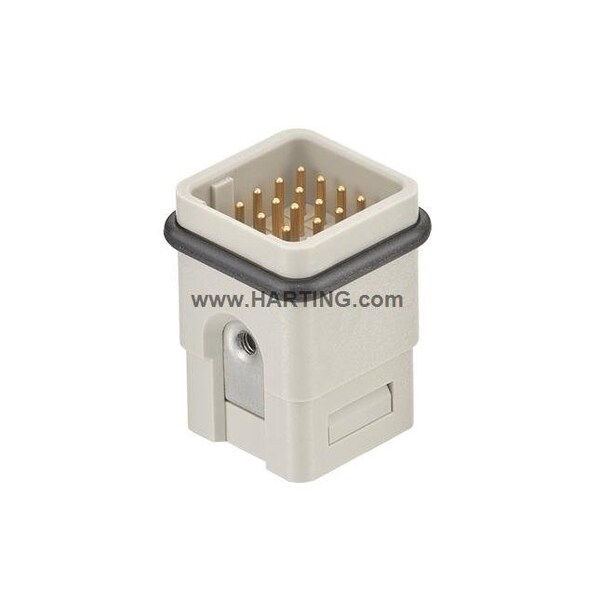

Han Q High Densit -M-, PK 10

  • Mfr # 09120213001

  • Zoro # G2050499

product price:  $206.99
/pk 10, $20.70/ea
Free Shipping & Returns

Key Features

Color
Pebble Gray
Insulation Material
Polycarbonate
Maximum Voltage
50 V AC/120 V DC
Current
6.5 A
Maximum Operating Temperature
125 Degrees C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
09120213001
Zoro #
G2050499
UPC #
-
Country of Origin
Germany

Dimensions

Max. Single Wire Size
0.56 mm2
Min. Single Wire Size
0.09 mm2
Maximum Single Wire Size
0.510 AWG
Minimum Single Wire Size
28 AWG

Details

Item
Contact Insert
Color
Pebble Gray
Insulation Material
Polycarbonate
Maximum Voltage
50 V AC/120 V DC
Current
6.5 A
Maximum Operating Temperature
125 Degrees C
UL 94 Flammability Rating
V-0
Connector Type
Male
Standards
EN 45545-2 (2020-08); DNV GL; UL 1977 ECBT2.E235076; CSA-C22.2 No. 182.3 ECBT8.E235076
Series
Han Q
Terminal Type
Crimp
Green Environmental Attribute
Pollution Degree 3
Max. Temp.
125°C
Approximate Amperage Rating - Grounding Braid
6.5 A
Sub-Category
Inserts
Max. Voltage
50 V AC; 120 V DC
Material
Polycarbonate
Number of Contacts
21
Current Rating
6.5 A
Flammability Rating
UL 94 V-0

Description

Inserts, Crimp termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: ‌6.5 A, Size: 3 A, Contacts: 21, Conductor cross-section: 0.09 ... 0.56 mm2
