harbus64-160FS-3, 0C1-1-Trans.,
Mfr # 02041601101
Zoro # G4052228
product price:
$
3,370.99
/pk 20, $168.55/ea
Free Shipping & Returns
Key Features
Color
Pebble Gray
Insulation Material
Glass Fiber Filled Thermoplastic Resin
Current
1 A
Series
Har-Bus 64
Standards
UL 1977 ECBT2.E102079; CSA-C22.2 No. 182.3 ECBT8.E102079
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 02041601101
- Zoro #
- G4052228
- UPC #
- -
- Country of Origin
- Germany
Details
- Item
- PCB Connector
- Color
- Pebble Gray
- Insulation Material
- Glass Fiber Filled Thermoplastic Resin
- Current
- 1 A
- Series
- Har-Bus 64
- Standards
- UL 1977 ECBT2.E102079; CSA-C22.2 No. 182.3 ECBT8.E102079
- Maximum Operating Temperature
- 125 Degrees C
- UL 94 Flammability Rating
- V-0
- RoHS Compliant
- Lead-Free
- Approximate Amperage Rating - Grounding Braid
- 1 A
- Connection Material
- Copper Alloy
- Features
- Angled
- Terminal Type
- Wave Soldering
- Sub-Category
- Connectors
- Description/Special Features
- Angled
- Finish
- Noble Metal over Ni (Mating Side) Sn over Ni (Termination Side)
- Green Environmental Attribute
- Lead-Free
- Material
- Glass Fiber Filled Thermoplastic Resin
- Max. Temp.
- 125°C
- Contact Finish
- Noble Metal; Tin over Nickel
- Number of Contacts
- 160
- Number of Rows
- 5
- Flammability Rating
- UL 94 V-0
Description

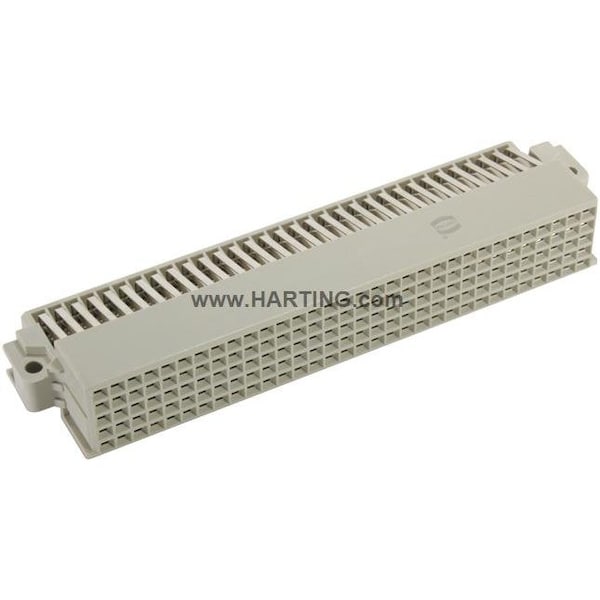

Connectors, Female connector, Wave soldering termination, Rated current: 1 A, Contacts: 160, Angled, Copper alloy, Noble metal, Mating side, Sn over Ni, Termination side, Performance level: 1, acc. to IEC 61076-4-113, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)
