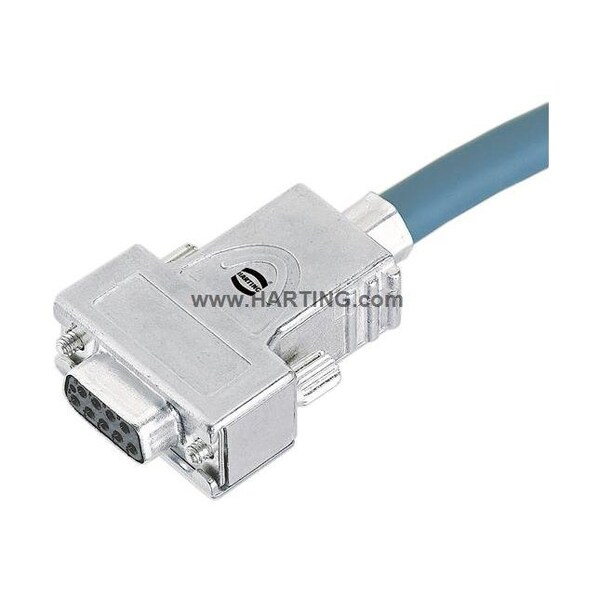

InduCom 15p T&S-entry kn-screw M3, PK 10
Mfr # 61030013016
Zoro # G7739198
product price:Â
$
763.99
/pk 10, $76.40/ea
Free Shipping & Returns
Key Features
Material
Die Cast Zinc
Series
D-Sub InduCom
Height
14.8 mm
Length
36.4 mm
Width
39.5 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 61030013016
- Zoro #
- G7739198
- UPC #
- -
- Country of Origin
- China
Dimensions
- Height
- 14.8 mm
- Length
- 36.4 mm
- Width
- 39.5 mm
- Size
- D-Sub 2
Details
- Item
- Shell Housing
- Material
- Die Cast Zinc
- Series
- D-Sub InduCom
- Version
- Top entry
- Strain relief
- An additional InduCom cable clamp or a crimp flange - ferrule combination is available dependant on the use of the cable.
- ground connection
- With internal grounding block
- Description of hood/housing
- With internal earth
- Limiting temperature
- -40 ... +125 °C
- Material (screw)
- Steel, nickel plated
- Locking type
- Knurled screw Thread M3
- Cable entry
- 1x
- Tightening torque
- €Œ0.4 Nm ground connection || €Œ0.4 Nm cover screw || €Œ0.4 Nm Locking screw
- Type of hood/housing
- Shell housing
- 2 parts
- Yes
- Degree of protection acc. to IEC 60529
- IP30
- Material (hood/housing)
- Zinc die-cast
- Series of hoods/housings
- D-Sub InduCom
- Ambient temperature
- -20 ... +90 °C
- Separable
- Yes
Description
Shell housing, With internal earth, Size: D-Sub 2, Knurled screw, Thread M3, Top entry, 1x, Material (hood/housing): Zinc die-cast, Degree of protection: IP30
