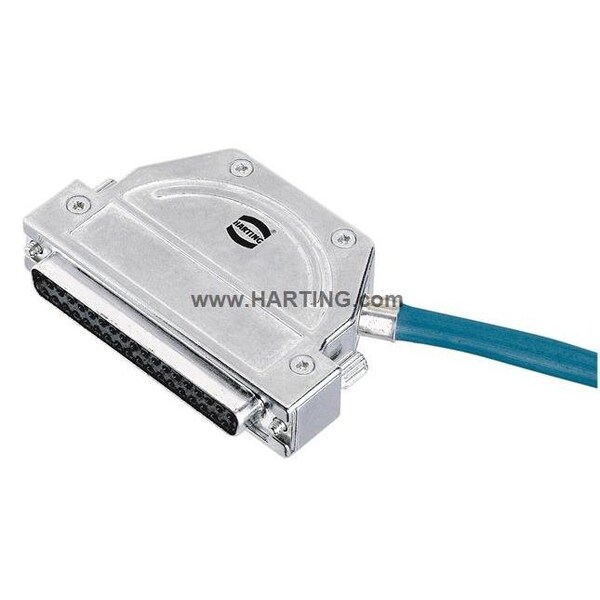

InduCom 9p S40 Degree-entry hexscrew 4-40, PK 10
Mfr # 61030012013
Zoro # G7738312
product price: $508.99
/pk 10, $50.90/ea
Free Shipping & Returns
Key Features
Material
Die Cast Zinc
Series
D-Sub InduCom
Width
31 mm
Height
14.8 mm
Size
D-Sub 1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 61030012013
- Zoro #
- G7738312
- UPC #
- -
- Country of Origin
- China
Dimensions
- Width
- 31 mm
- Height
- 14.8 mm
- Size
- D-Sub 1
- Length
- 36.4 mm
Details
- Item
- Shell Housing
- Material
- Die Cast Zinc
- Series
- D-Sub InduCom
- Cable entry
- 1x
- Limiting temperature
- -40 ... +125 °C
- Degree of protection acc. to IEC 60529
- IP30
- Material (hood/housing)
- Zinc die-cast
- Type of hood/housing
- Shell housing
- ground connection
- With internal grounding block
- Version
- 40° side entry
- Locking type
- Hexagonal screw with captive washer Thread 4-40 UNC
- Material (screw)
- Steel, nickel plated
- Series of hoods/housings
- D-Sub InduCom
- Strain relief
- An additional InduCom cable clamp or a crimp flange - ferrule combination is available dependant on the use of the cable.
- Tightening torque
- Œ0.4 Nm ground connection || €Œ0.4 Nm cover screw || €Œ0.4 Nm Locking screw
- 2 parts
- Yes
- Separable
- Yes
- Description of hood/housing
- With internal earth
- Ambient temperature
- -20 ... +90 °C
Description
Shell housing, With internal earth, Size: D-Sub 1, Hexagonal screw with captive washer, Thread 4-40 UNC, 40° side entry, 1x, Material (hood/housing): Zinc die-cast, Degree of protection: IP30
