Shop HARTING

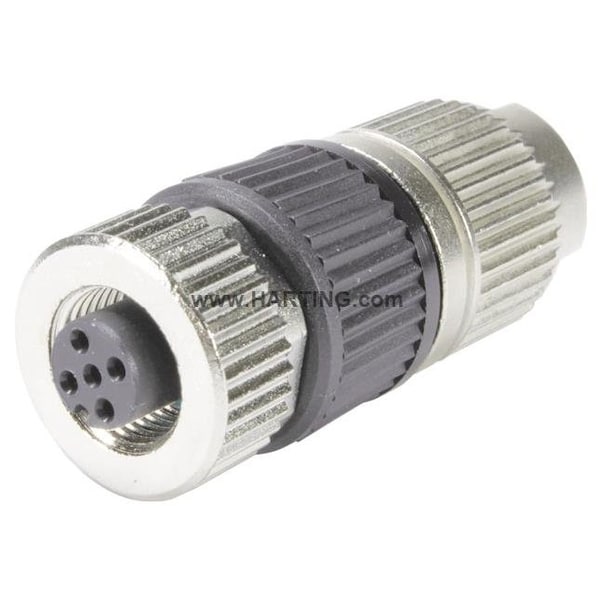

M12 Circular Connector, 4 Poles, 4 A

  • Mfr # 21032122305

  • Zoro # G705285969

product price:
$
38.19
/ea

Key Features

Style - Connector
Straight
Cable Opening Max.
8 mm
Cable Opening Min.
6 mm
Material
Polyamide; Zinc Die-Cast
Type
Female
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
21032122305
Zoro #
G705285969
UPC #
-
Country of Origin
Germany

Dimensions

Thread Size
M12
Cable Outside Diameter
8 mm
Conductor Cross Section Size
0.75 sq mm

Details

Style - Connector
Straight
Cable Opening Max.
8 mm
Cable Opening Min.
6 mm
Material
Polyamide; Zinc Die-Cast
Type
Female
Standards
California Proposition 65, CSA Certified, ELV Compliant, IEC 61076-2-101, REACH SVHC, RoHS Complaint, UL Listed
Item
M12 Circular Connector
Nominal Current
4 A
Voltage Rating
50V
Insulation Resistance
Greater than 1,000 Megaohm
Mounting Style
Female Thread
Connector Orientation
Straight
Housing Material
Zinc Die-Cast
Coding
A
Minimum Mating Cycles
100
Number of Poles
4
Includes Nut
Yes
Maximum Operating Temperature
85 Degrees C
Number of Contacts
4 Socket
Minimum Operating Temperature
-40 Degrees C
Connector Body Type
Socket
Maximum Contact Resistance
10 megaohm
Locking Style
Screw Connection
Application
DC Power, Gigabit Internet, Sensors, Signal
Shielded
No
Connection Type
Cable Connector
IP Rating
IP65, IP67

Description

HAEL 21032122305 CIRCULAR CR WHARAX

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
