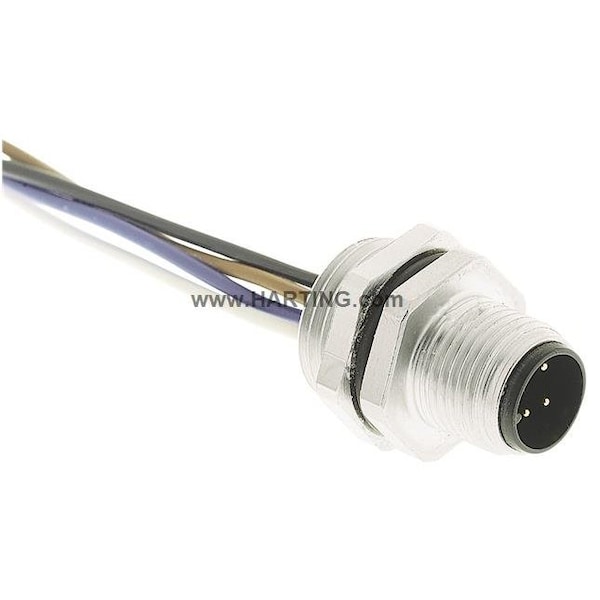

Harting M12 Circular Connector, 4 Poles, 4 A 21033111402 - main

M12 Circular Connector, 4 Poles, 4 A

  • Mfr # 21033111402

  • Zoro # G805285999

product price: $23.59
/ea

Key Features

Type
Male
Includes
Lock Nut
Material
Zinc Die-Cast
Standards
California Proposition 65, CSA Certified, ELV Compliant, IEC 61076-2-101, REACH SVHC, RoHS Complaint, UL Listed
Minimum Mating Cycles
100
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
21033111402
Zoro #
G805285999
UPC #
-
Country of Origin
Germany

Dimensions

Conductor Cross Section Size
0.5 sq mm
Thread Size
M12

Details

Type
Male
Includes
Lock Nut
Item
M12 Panel Feed-Through Connector
Material
Zinc Die-Cast
Standards
California Proposition 65, CSA Certified, ELV Compliant, IEC 61076-2-101, REACH SVHC, RoHS Complaint, UL Listed
Minimum Mating Cycles
100
Housing Material
Zinc Die-Cast
Shielded
No
Connector Orientation
Straight
Locking Style
Screw Connection
Mounting Style
Male Thread
Minimum Operating Temperature
-40 Degrees C
Number of Poles
4
Maximum Contact Resistance
10 megaohm
Maximum Operating Temperature
85 Degrees C
Insulation Resistance
Greater than 1,000 Megaohm
Number of Contacts
4 Pin
Application
DC Power, Gigabit Internet, Sensors, Signal
Connection Type
50 cm Wire Leads
Voltage Rating
250V
Connector Body Type
Pin
Nominal Current
4 A
IP Rating
IP67
Coding
A

Description

Harting Feed Thr

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
