Shop HARTING

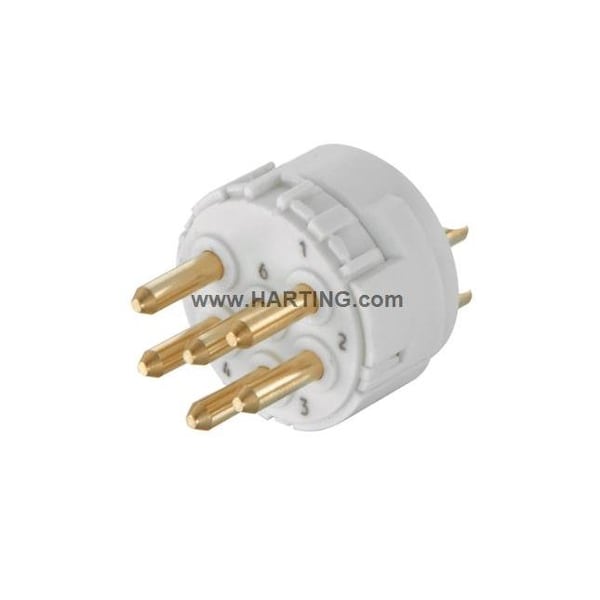

M23 06 Male - Solder (Terminat, PK 5

  • Mfr # 09151062602

  • Zoro # G7738251

product price:  $138.99
/pk 5, $27.80/ea
Free Shipping & Returns

Key Features

Color
White
Material
Polyamide
Series
Circular connectors M23
Conductor Size - Data Cable
2.5 sq mm
Standards
UL 1977 ECBT2.E235076
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
09151062602
Zoro #
G7738251
UPC #
-
Country of Origin
Germany

Dimensions

Conductor Size - Data Cable
2.5 sq mm

Details

Item
Insert
Color
White
Material
Polyamide
Series
Circular connectors M23
Standards
UL 1977 ECBT2.E235076
Termination Type
Solder
Temp. Range
-40 to 125°C
Number of contacts
6
Colour (insert)
White
Conductor cross-section
2.5 mm² max.
Gender
Male
Pollution degree
3
Element
Inserts
Rated impulse voltage
2.5 kV
UL / CSA
UL 1977 ECBT2.E235076
Limiting temperature
-40 ... +125 °C
Rated current
20 A
Rated voltage
300 V
Material (contacts)
Copper alloy
Identification
Signal
Insulation resistance
>10
Surface (contacts)
Gold plated
Material flammability class acc. to UL 94
V-0
Termination Method
Solder termination
Material (insert)
Polyamide (PA)
Mating cycles
≥500

Description

Inserts, Solder termination, Male, Polyamide (PA), White, Rated current: ‌20 A, Contacts: 6, Conductor cross-section: 2.5 mm2 max., Copper alloy, Gold plated
