  5. Rectangular Connector Insert, 16 A

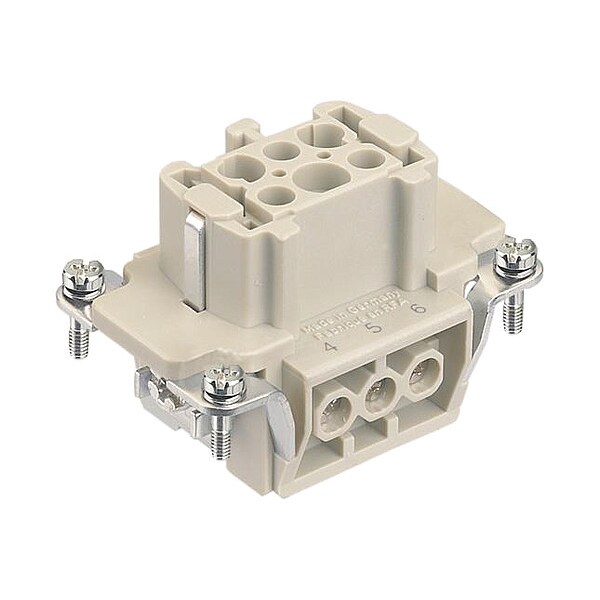

Harting Rectangular Connector Insert, 16 A 09330062701 - main

Rectangular Connector Insert, 16 A

  • Mfr # 09330062701

  • Zoro # G805293284

product price:  $16.59
/ea

Key Features

Type
Female
Color
Pebble Gray
Insulation Material
Polycarbonate
Maximum Voltage
500 V
Current
16 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
09330062701
Zoro #
G805293284
UPC #
-
Country of Origin
Germany

Dimensions

Wire Size
0.75 to 2.5 sq mm, 18 to 14 AWG
Max. Single Wire Size
14 AWG
Min. Single Wire Size
18 AWG
Minimum Single Wire Size
18 AWG
Maximum Single Wire Size
14 AWG
For Minimum Wire Size - Solid
18 AWG

Details

Item
Industrial Rectangular Connector Insert
Type
Female
Color
Pebble Gray
Insulation Material
Polycarbonate
Maximum Voltage
500 V
Current
16 A
Minimum Operating Temperature
-40 Degrees C
Maximum Operating Temperature
125 Degrees C
UL 94 Flammability Rating
V-0
Material
Polycarbonate
Application
Industrial Connectors
Connector Gender
Female
Pole Finish
Silver Plated
Minimum Mating Cycles
500
Pole Material
Copper Alloy
Includes Poles
Yes
Current Rating
16 A
Connection Type
Screw
Number of Poles
6
Insert Material
Polycarbonate
Maximum Contact Resistance
1 megaohm
Insert Color
Gray
Voltage Rating
500V, 600V (UL/CSA)
Minimum Insulation Resistance
1.00 x 10^10 ohm
Max. Voltage
500V
Series
Han(R) E
Connector Type
Female
Connection Material
Copper Alloy
Standards
California Proposition 65, China RoHS, DNV GL, ELV Compliant, EN 60664-1, REACH SVHC, RoHS Complaint, UL/CSA
Terminal Type
Screw
Green Environmental Attribute
Pollution Degree 3
Sub-Category
Inserts
Max. Temp.
125°C
Number of Contacts
6
Contact Finish
Silver Plated
Flammability Rating
UL 94 V-0
Termination Style
Screw
Maximum Conductors
6

Description

HAEL 09330062701 HAN E 06 POS. F IN
