  9. Rji Ip20 Data Plug, PK 10

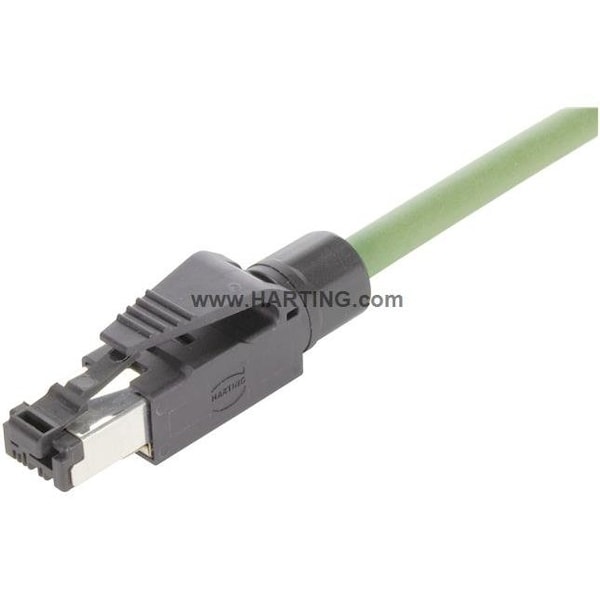

Harting Rji Ip20 Data Plug, PK 10 09451511100 - main

Rji Ip20 Data Plug, PK 10

  • Mfr # 09451511100

  • Zoro # G7737113

product price: $233.99
/pk 10, $23.40/ea
Free Shipping & Returns

Key Features

Color
Black
Series
HARTING RJ Industrial
Standards
IEC 60603-7 Mating face; ISO/IEC 11801; EN 50173-1; EN 45545-2; DNV GL; UL 1977 ECBT2.E102079; CSA-C22.2 No. 182.3 ECBT8.E102079
Includes
Hood with Shielding; Splicing Element; Cable Gland; Assembly Instructions
Termination Type
IDC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
09451511100
Zoro #
G7737113
UPC #
-
Country of Origin
Romania

Dimensions

Conductor Size - Data Cable
0.22 to 0.32 sq mm (Stranded); 0.26 to 0.32 sq mm (Solid)
Cable Diameter
4.5 ... 9 mm
Wire outer diameter
≤1.6 mm

Details

Item
Cable Connector
Color
Black
Series
HARTING RJ Industrial
Standards
IEC 60603-7 Mating face; ISO/IEC 11801; EN 50173-1; EN 45545-2; DNV GL; UL 1977 ECBT2.E102079; CSA-C22.2 No. 182.3 ECBT8.E102079
Includes
Hood with Shielding; Splicing Element; Cable Gland; Assembly Instructions
Termination Type
IDC
Material
Polyamide
Transmission Speed
10 Mbit/s; 100 Mbit/s
Shielding
Fully Shielded
Temp. Range
-40 to 70°C
Number of contacts
4
Conductor cross-section
AWG 24 ... AWG 22 Stranded || AWG 23 ... AWG 22 Solid
Transmission characteristics
Cat. 5 Class D up to 100 MHz
UL / CSA
UL 1977 ECBT2.E102079 || CSA-C22.2 No. 182.3 ECBT8.E102079
Degree of protection acc. to IEC 60529
IP20
Limiting temperature
-40 ... +70 °C
PROFINET
Yes
Data Rate
10 Mbit/s || 100 Mbit/s
Material (hood/housing)
Polyamide (PA)
Element
Cable connector
Mating cycles
≥750
Specifications
IEC 60603-7 Mating face || IEC 11801 || EN 50173-1 || DIN EN 45545-2 R26: HL1, HL2, HL3
Specification
Straight
Approvals
DNV GL
Colour (hood/housing)
Black
Pack contents
Hood with shielding || Splicing element || Cable gland || Assembly instructions
Termination Method
IDC termination
Material flammability class acc. to UL 94
V-0

Description

Connectors, IDC termination, Contacts: 4, Material: Polyamide (PA), Degree of protection: IP20
