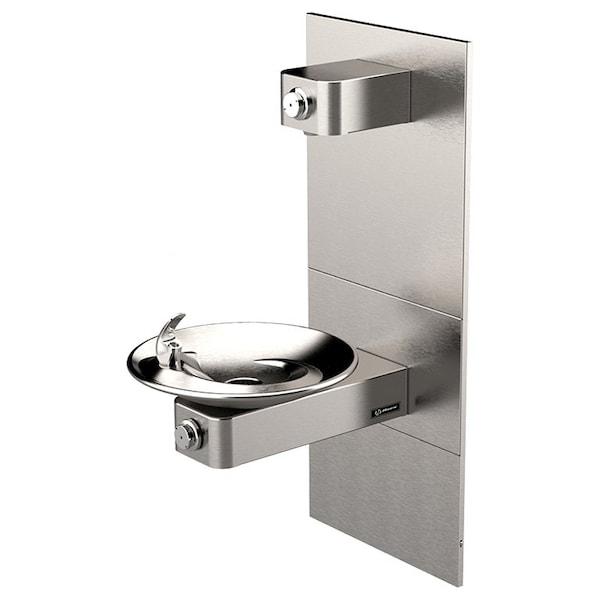

1001MS ADA Vandal-Resistant Fountain and Bottle Filler w/Mounting System

Model 1001MSP ADA wall-mounted vandal-resistant drinking fountain and bottle filler shall include an 18-gauge Type 304 Stainless Steel satin finish basin with integral swirl design, 14 gauge Type 304 Stainless Steel wall bracket and bottle filler bracket, 3/16" 0.47 cm thick steel mounting plate for bottle filler, in-wall mounting frame with lower access panel allowing for front access of P-trap and stop, 100% lead-free waterways, vandal-resistant push-button operated stainless steel valves with front-accessible cartridge and flow adjustment, polished chrome-plated brass vandal resistant bubbler head with integral laminar anti-squirt flow, 1gpm 3.78L laminar flow bottle filler, chrome-plated brass vandal-resistant waste strainer, stainless steel satin finish back panels, and 1-1/4 O.D. 3.2 cm waste pipe. In extreme environments related to heat and cold, products must be protected from damage/exposure due to these extreme conditions.

• Only stainless steel valve body that is machined out of solid bar stock
• 18 gauge Type 304 Stainless Steel bowl assembly mounted on a 14 gauge Type 304 Stainless Steel wall bracket
• Vandal resistant components include bubbler, bowl, button, drain and bottom plate
• 1 gpm (3.78 L) bottle filler laminar flow.
• 100% lead-free waterways
• Front access plate allows for front access of P-trap and stop
• Polished chrome-plated brass bubbler head with integral laminar anti-squirt flow eliminate water splash
• Easy maintenance with front access to valve adjustment and cartridge replacement
• Optional 3000 gallon water filter available (model 6480)
