Emergency Mixing Valve, Brass, Yellow, For Use With, Eyewashes, Showers

  • Mfr # 9201E

  • Zoro # G4378997

product price:  $1,481.99
/ea
Free Shipping & Returns

Key Features

For Use With
Eyewashes, Showers
Material
Brass
Color
Yellow
Height
5 3/8 in
Width
3 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
9201E
Zoro #
G4378997
UPC #
611970358017
Country of Origin
United States

Dimensions

Height
5 3/8 in
Width
3 1/2 in
Length
8 in
Inlet Size
1-1/4" NPT
Depth
7 5/8 in
Inlet Pipe Size
1-1/4"
Outlet Pipe Size
1 1/4 in

Details

Item
Emergency Mixing Valve
For Use With
Eyewashes, Showers
Material
Brass
Color
Yellow
Compatible with Brand
Haws
Standards
ANSI Z358.1, ASSE 1071, CSA B125.3, CSA Certified
Flow Rate
31 gpm
Features
Deposits Resistant, Flow Range of 1 to 31 gpm (117.3 L), Mixing Chamber, Shuttle Design
Type
Emergency Safety
Maximum Inlet Temperature
180 Degrees F
Minimum Water Output Temperature
60 Degrees F
Valve Features
Cold Water Bypass
Maximum Flow Rate
31 gpm
Maximum Inlet Pressure
125 psi
Accessory Type
Thermostatic Mixing Valve
Inlet Pipe Thread Type
NPT
Maximum Water Output Temperature
90 Degrees F
Outlet Pipe Thread Type
NPT
Outlet Pipe Gender
Female
Inlet Pipe Gender
Female
Activation Type
Flow of Hot and Cold Water
Sub-Brand
AXION

Description

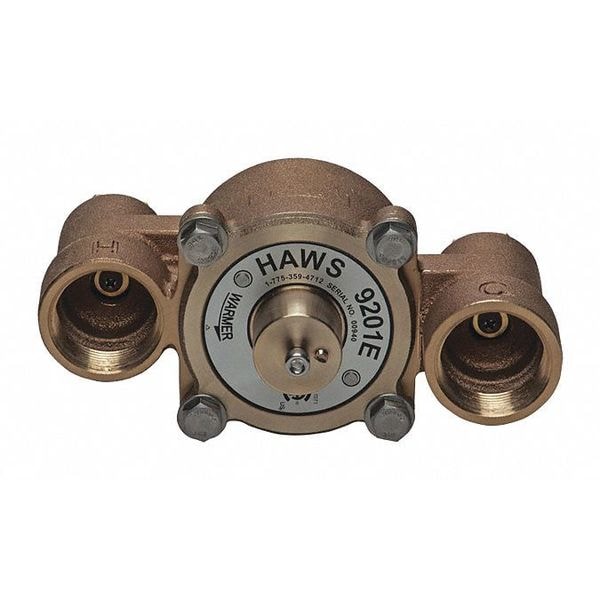

The HAWS - 9201E is an emergency mixing valve for use as a thermostatic mixing valve accessory in eyewash and shower systems. It regulates the mixing of hot and cold water to mix hot and cold water to achieve the specified outlet temperature range under installation and operating conditions. The valve opens in response to the specified hot and cold water flow, providing rated maximum flow rate: 31 gpm. Brass body with yellow finish. Intended for use in emergency eyewash and shower systems.

Key Features:

  • Thermostatic mixing valve accessory for temperature mixing.
  • Opens in response to the specified hot and cold water flow.
  • Rated maximum flow rate: 31 gpm.
  • Dimensions: 8 in length, 7 5/8 in depth, 5 3/8 in height, and 3 1/2 in width.
  • Inlet and outlet pipe size: 1 1/4 in female NPT connections.
  • Maximum inlet pressure: 125 psi.
  • Rated for inlet temperatures up to 180 °F with outlet temperature range specified as 60 °F to 90 °F.
  • Includes valve features such as a cold water bypass and a shuttle design in the mixing chamber.
  • Constructed to resist deposit formation (as supported by the product’s material/feature description).
  • Listed/certified to ANSI Z358.1, ASSE 1071, CSA B125.3.
