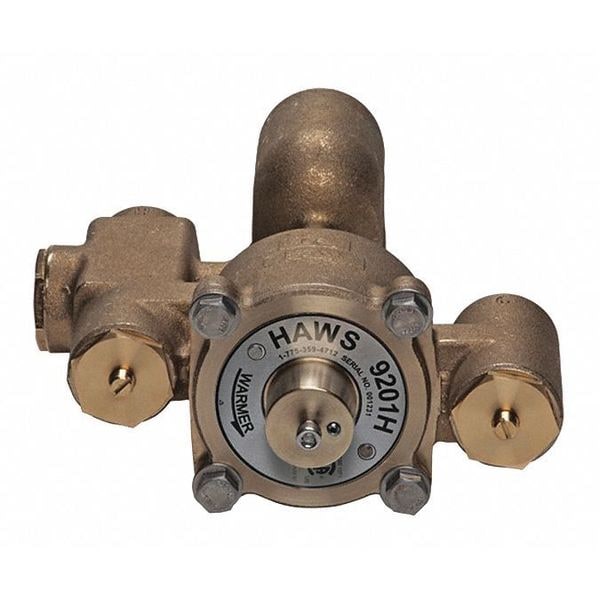

Emergency Mixing Valve, Brass, Yellow, For Use With, Eyewashes, Showers

  • Mfr # 9201H

  • Zoro # G4379024

product price:  $2,393.99
/ea
Free Shipping & Returns

Key Features

For Use With
Eyewashes, Showers
Material
Brass
Color
Yellow
Height
6 3/4 in
Width
4 1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9201H
Zoro #
G4379024
UPC #
611970358048
Country of Origin
United States

Dimensions

Height
6 3/4 in
Width
4 1/2 in
Length
7 in
Inlet Size
1" NPT
Depth
8 in
Inlet Pipe Size
1"
Outlet Pipe Size
1 1/4 in

Details

Item
Emergency Mixing Valve
For Use With
Eyewashes, Showers
Material
Brass
Color
Yellow
Compatible with Brand
Haws
Standards
ANSI Z358.1, ASSE 1071, California Health and Safety Code 116875 (AB 1953-2006), CSA B125.3, NSF/ANSI 372, NSF/ANSI 61-section 8
Flow Rate
31 gpm
Features
Deposits Resistant, Flow Range of 1 to 31 gpm (117.3 L), Mixing Chamber, Shuttle Design
Type
Emergency Safety
Inlet Pipe Gender
Female
Maximum Inlet Pressure
125 psi
Minimum Water Output Temperature
60 Degrees F
Accessory Type
Thermostatic Mixing Valve
Inlet Pipe Thread Type
NPT
Maximum Water Output Temperature
90 Degrees F
Outlet Pipe Gender
Female
Outlet Pipe Thread Type
NPT
Maximum Inlet Temperature
180 Degrees F
Valve Features
Cold Water Bypass
Maximum Flow Rate
31 gpm
Activation Type
Flow of Hot and Cold Water
Sub-Brand
AXION

Description

The HAWS - 9201H is an accessory thermostatic mixing valve for use with eyewash and shower equipment. It blends hot and cold water to deliver outlet water temperatures within the specified range for emergency eyewash/shower applications (60–90°F outlet temperature). The valve is compatible for use with specified eyewash and shower models/accessories provided by the manufacturer. It activates through the flow of hot and cold water, providing outlet temperature regulation within the specified limits (60–90°F).

Key Features:

  • Thermostatic mixing valve accessory intended for use with emergency eyewash/shower equipment.
  • Flow rate up to 31 gpm with a flow range of 1 to 31 gpm.
  • Outlet pipe dimensions: 1 1/4" NPT female; inlet pipe: 1" NPT female connection.
  • Controls water outlet temperature between 60 and 90 Degrees F.
  • With a maximum inlet temperature rating of 180 Degrees F.
  • Is rated for operation up to a maximum inlet pressure of 125 psi.
  • Features include constructed with deposit-resistant materials/components, a mixing chamber, shuttle design, and a cold water bypass valve feature.
  • Dimensions are approximately 6 3/4" height, 4 1/2" width, 7" length, and 8" depth.
