  11. Actuated Ball Valve, Tube Size 2", PTFE

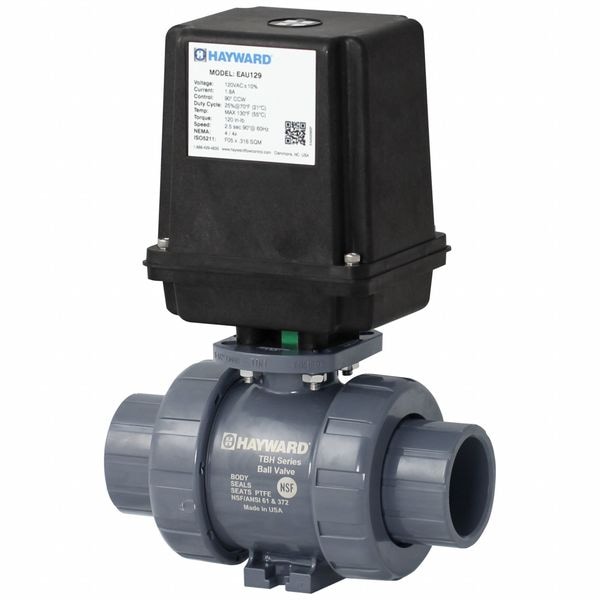

Hayward Flow Control Actuated Ball Valve, Tube Size 2", PTFE EAUTBH120STE - main

Actuated Ball Valve, Tube Size 2", PTFE

  • Mfr # EAUTBH120STE

  • Zoro # G806626241

product price: $825.99
/ea
Free Shipping & Returns

Key Features

Body Material
PVC
Standards
ANSI 372, ASTM D1784, UL/CSA
Overall Length
7.99 in
Temp. Range
250 PSI @ 70 Degrees F 16 Bar @ 21 Degrees C Non-Shock
Valve Structure
1-Piece
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EAUTBH120STE
Zoro #
G806626241
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
7.99 in
Pipe Size
2 in
Tube Size
2 in
Connection Size - Side 1
2 in
Nominal Valve Size
2 in
Connection Size - Side 2
2 in

Details

Item
Electrically Actuated Two-Way Ball Valve
Body Material
PVC
Standards
ANSI 372, ASTM D1784, UL/CSA
Temp. Range
250 PSI @ 70 Degrees F 16 Bar @ 21 Degrees C Non-Shock
Valve Structure
1-Piece
Connection Type
Socket x Thread
Body Seal Material
EPDM
Body Style
2-way
Seal Material
EPDM
Seat Material
PTFE
Stem Material
PVC
Mount
Integral
Voltage
120V AC
Port
Full
Max. Pressure
250 psi
Ball Material
PVC
3-A Standard Compliance
Not Rated
Operating Temperature - Maximum
140 Degrees F
Actuator Cycle Time - 90 Degrees
2.5 sec
Actuator Electrical Entry
1/2 in NPT Conduit
Connection Gender - Side 1
Female
Valve Ways
2-Way
Actuator Series
EAU1
Actuator Maximum Torque
120 in-lb
Coefficient of Volume (Cv)
8
Valve Body Style
Straight
Operating Temperature - Minimum
34 Degrees F
Manufacturer Warranty
3 yr
Connection Type - Side 2
True-Union Socket/True-Union NPT
Included Mounting
ISO 5211 Actuator Mounting Pad
Actuator Enclosure Material
Glass-Filled Polypropylene
Maximum Current
1.8 A
Connection Type - Side 1
True-Union Socket/True-Union NPT
NSF Certifications for Food and Drinking Water
NSF 61
Maximum Pressure - Operating
250 psi
For Media
Corrosive Chemicals, Water
Actuator Features
Auxiliary Limit Switch, Thermal Overload Protection
Actuator Motor Type
Unidirectional
Actuator Operation
90 Degrees
Maximum Pressure - Combustible Gas
Not Rated
Valve Construction
Three-Piece
Ball Port Style
Full Port
Fail Safe Position
Fail Last
NEMA Enclosure Rating
4, 4X
Connection Gender - Side 2
Female
Actuator Duty Cycle
25 %
Valve Series
TBH

Description

Electrically Actuated Two-Way Ball Valve, Ball Material PVC, Nominal Valve Size 2 in, Maximum Pressure - Operating 250 psi, Actuator Operation 90 Degrees , Valve Body Style Straight, Seat Material PTFE, Seal Material EPDM, Voltage 120V AC, Fail Safe Position Fail Last, Actuator Cycle Time - 90 Degrees 2.5 sec, Valve Construction Three-Piece, Actuator Features Auxiliary Limit Switch, Thermal Overload Protection, Connection Gender - Side 1 Female
