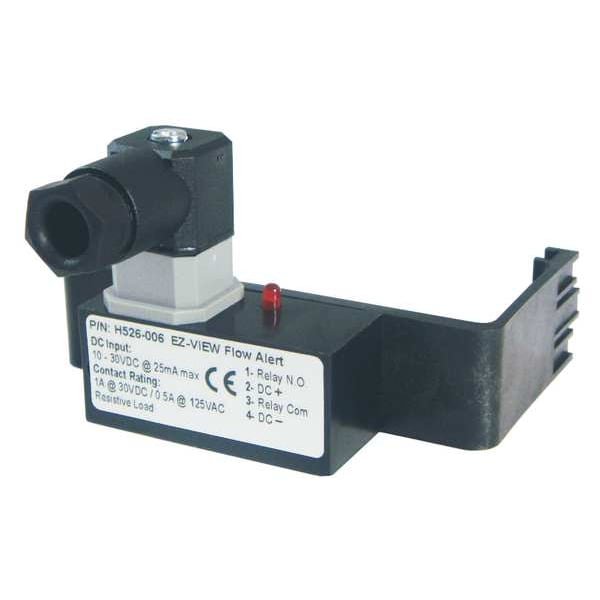

Flow Switch 10-30 VDC
Mfr # H526-006
Zoro # G1655771
product price: $191.99
/ea
Free Shipping & Returns
Key Features
Voltage
10-30V DC
NEMA Rating
12 and 13 (IP65)
Min. Current
25 mA
Type
DC Latching
Contact Ratings
1A @ 30V DC, 0.5A @ 125V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
H526-006
Zoro #
G1655771
UPC #
-
Country of Origin
United States
Details
Voltage
10-30V DC
Item
Flow Switch
NEMA Rating
12 and 13 (IP65)
Min. Current
25 mA
Type
DC Latching
Contact Ratings
1A @ 30V DC, 0.5A @ 125V AC
For Use With
Polysulfone Or Radel(R) R Bodies For 1-1/2 in And 2 in Models
Agency Compliance
CE
Operating Temp. (F)
32 to 158
Connector
4-Pin (Protection Class IP65)
Switch Enclosure
NEMA 12, NEMA 13
Media Temperature - Minimum
32 Degrees F
Media Temperature - Maximum
158 Degrees F
Contact Rating (DC)
1 A @ 30V
Connection Type
NPT
Contact Rating (AC)
0.5 A @ 125V
Frequency
50 Hz, 60 Hz
Set Point Configuration
Adjustable
Housing Material
Polycarbonate
Flow Switch Type
Paddle
Switch Position
Normally Open
Description
Flow Switch, Connection Type NPT, Contact Rating (AC) 0.5 A @ 125V, Contact Rating (DC) 1 A @ 30V, Flow Switch Type Paddle, Frequency 50 Hz, 60 Hz, Housing Material Polycarbonate, Media Temperature - Maximum 158 Degrees F, Media Temperature - Minimum 32 Degrees F, Set Point Configuration Adjustable, Switch Enclosure NEMA 12, NEMA 13, Switch Position Normally Open
