  9. Flowmeter, 1 MNPT, 3-18 GPM
Shop All Flowmeters
Hedland

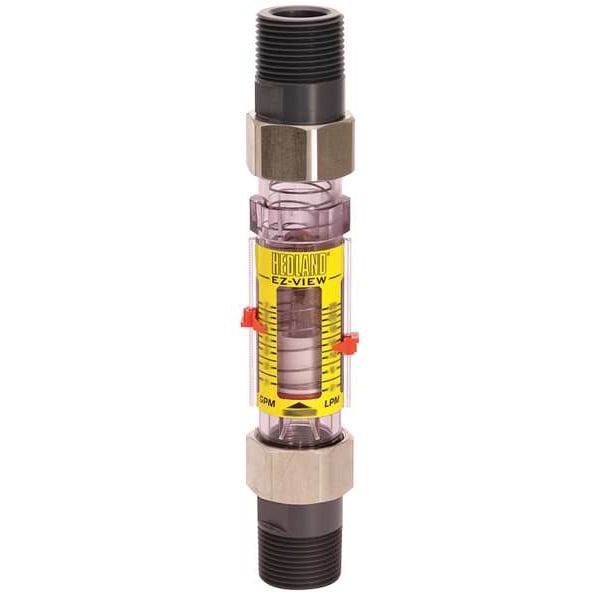

Flowmeter, 1 MNPT, 3-18 GPM

product price: $150.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Housing Material PPSU
  • Type Variable Area
  • For Pipe Size 1 in
  • Flow Material Water
  • Connection Size 1 in
See all product information

Product Information

Dimensions

For Pipe Size 1 in
Connection Size 1 in
Connection Size (In.) 1 MNPT
Length 8 7/8 in
Manufacturers Warranty Length 1 yr
Length (In.) 8-7/8"
Width (In.) 1-1/2"
Width 1 1/2 in
Height (In.) 1-1/2
Height 1 1/2 in
Overall Width 1.8 in
Overall Height 1.4 in
Overall Length 8.5 in
Manufacturer Warranty Length 1 yr

Details

Item Mechanical Flowmeter
Housing Material PPSU
Type Variable Area
Flow Material Water
Connection Type NPTF
Max. Pressure 325 psi
Wetted Materials Buna-N, C360 Brass, PH15-7MO Stainless Steel, Polysulfone, PVC, Strontium, T300 Stainless Steel
Max. Viscosity 500 SUS
Flow Range 3 to 18 gpm
Fitting PVC
Fluid Temp. Range 32 Degrees to 140 Degrees F
Flow Range @ GPM/LPM 3 to 18 / 15 to 65
Specific Gravity 1
Seal Material Buna-N
Chamber Material Radel(R)
Pressure Drop - 100% Flow (PSI) 2.25 psi
Flow Range @ GPM of Water 3-18
GPM Max. 18 gpm
Flow Range (GPM) 3-18
Accuracy (%) 5%
Max. Temp. (F) 250
Standards ANSI/ASME B1.20.1
Display Type Scale
Product Type Flow Meter
Viscosity - Maximum 500 SUS
Mounting Orientation Universal
Wetted Material PSU
Compatible Flow Material Water
Flowmeter Type Variable Area
Includes Pressure Gauge No
Unit Of Measure Gallons, Liters
O-Ring Material Buna-N
Media Temperature - Minimum 32 Degrees F
Includes Flow Rate Adjustment Knob No
Flow Rate - Minimum 3 gpm
Flow Rate - Maximum 18 gpm
Includes Totalizer No
Media Temperature - Maximum 250 Degrees F
Accuracy +/-5%
Operating Pressure - Maximum 325 psi

Description

Mechanical Flowmeter, Product Type Flow Meter, Flowmeter Type Variable Area, Accuracy +/-5 Percent, Connection Size 1 in, Connection Type NPTF, Compatible Flow Material Water, Media Temperature - Maximum 250 Degrees F, Media Temperature - Minimum 32 Degrees F, Viscosity - Maximum 500 SUS, Voltage - Maximum Not Applicable, Housing Material PPSU, Rotor Material Not Applicable, O-Ring Material Buna-N, Seal Material Buna-N, Shaft Material Not Applicable, Wetted Material PSU
