  9. Flowmeter, 3/4 MNPT, 0.5-4 GPM
Shop All Flowmeters
Hedland

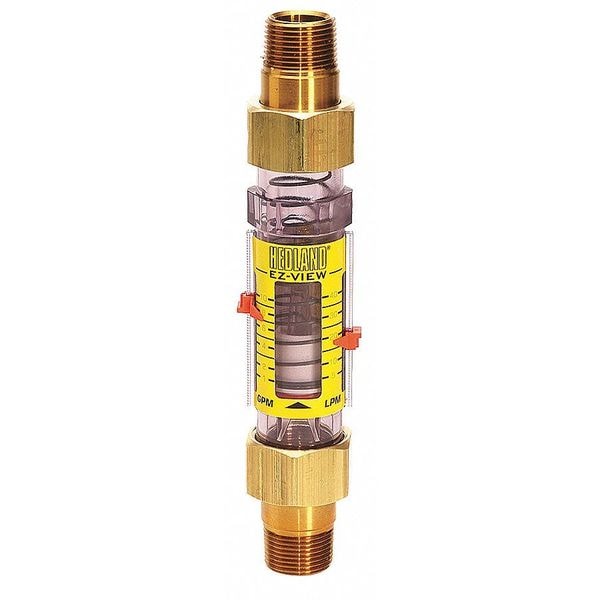

Flowmeter, 3/4 MNPT, 0.5-4 GPM

product price: $175.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Variable Area
  • Housing Material PPSU
  • For Pipe Size 3/4 in
  • Flow Material Water
  • Connection Size 3/4 in
See all product information

Product Information

Dimensions

For Pipe Size 3/4 in
Connection Size 3/4 in
Length 8 1/4 in
Manufacturers Warranty Length 1 yr
Length (In.) 8-1/4"
Width (In.) 1-1/2"
Height (In.) 1-1/2
Height 1 1/2 in
Connection Size (In.) 3/4 MNPT
Width 1 1/2 in
Manufacturer Warranty Length 1 yr
Overall Height 1.4 in
Overall Length 8.3 in
Overall Width 1.7 in

Details

Item Mechanical Flowmeter
Type Variable Area
Housing Material PPSU
Flow Material Water
Connection Type NPTF
Max. Pressure 325 psi
Max. Viscosity 500 SUS
Wetted Materials Buna-N, C360 Brass, PH15-7MO Stainless Steel, Polysulfone, PVC, Strontium, T300 Stainless Steel
Flow Range 0.5 to 4 gpm
Fitting Brass
Fluid Temp. Range 32 Degrees to 250 Degrees F
Accuracy (%) 5%
Flow Range @ GPM of Water 0.5-4
GPM Max. 4 gpm
Pressure Drop - 100% Flow (PSI) 2.25 psi
Max. Temp. (F) 250
Chamber Material Radel(R)
Max. Pressure (PSI) 325
Flow Range @ GPM/LPM 0.5 to 4 / 2 to 15
Seal Material Buna-N
Specific Gravity 1
Flow Range (GPM) .5-4
Display Type Scale
Standards ANSI/ASME B1.20.1
Product Type Flow Meter
Includes Totalizer No
Viscosity - Maximum 500 SUS
Includes Flow Rate Adjustment Knob No
Mounting Orientation Universal
O-Ring Material Buna-N
Media Temperature - Minimum 32 Degrees F
Compatible Flow Material Water
Unit Of Measure Gallons, Liters
Wetted Material PSU
Media Temperature - Maximum 250 Degrees F
Accuracy +/-5%
Flowmeter Type Variable Area
Flow Rate - Maximum 4 gpm
Includes Pressure Gauge No
Operating Pressure - Maximum 325 psi
Flow Rate - Minimum 0.5 gpm

Description

Mechanical Flowmeter, Product Type Flow Meter, Flowmeter Type Variable Area, Accuracy +/-5 Percent, Connection Size 3/4 in, Connection Type NPTF, Compatible Flow Material Water, Media Temperature - Maximum 250 Degrees F, Media Temperature - Minimum 32 Degrees F, Viscosity - Maximum 500 SUS, Voltage - Maximum Not Applicable, Housing Material PPSU, Rotor Material Not Applicable, O-Ring Material Buna-N, Seal Material Buna-N, Shaft Material Not Applicable, Wetted Material PSU

Restrictions

  • *** This is a restricted item. It cannot be used in the USA for potable water applications.
