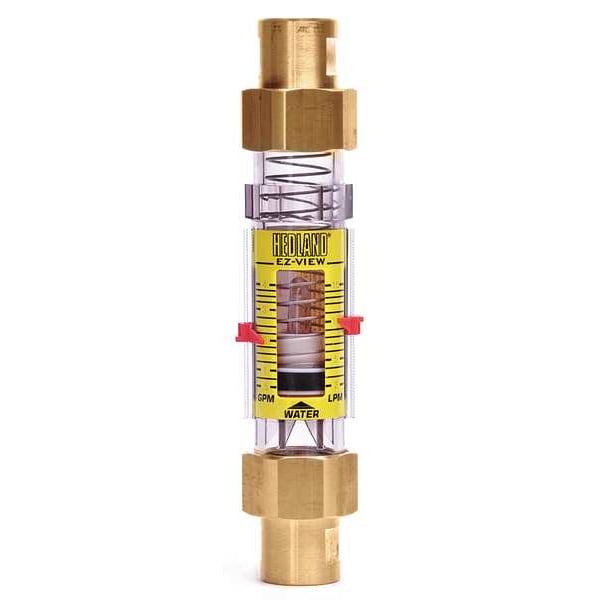

Shop HEDLAND

Flowmeter, GPM/LPM 0.5 - 4.0 / 2-15

  • Mfr # H624-604
  • Zoro # G2650295

product price:
$
179.99
/ea
Free Shipping & Returns

Key Features

Housing Material
PSU
Type
Variable Area
For Pipe Size
1/2 in
Flow Material
Other Liquids, Water
Connection Size
1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
H624-604
Zoro #
G2650295
UPC #
-
Country of Origin
United States
Item
Mechanical Flowmeter
Housing Material
PSU
Type
Variable Area
Flow Material
Other Liquids, Water
Connection Type
NPTF
Max. Pressure
325 psi
Wetted Materials
Buna-N, C360 Brass, PH15-7MO Stainless Steel, Polysulfone, PVC, Strontium, T300 Stainless Steel
Max. Viscosity
500 SUS
Flow Range
0.5 to 4 gpm
Fluid Temp. Range
32 Degrees to 250 Degrees F
Flow Range @ GPM/LPM
0.5 to 4 / 2 to 15
Specific Gravity
1.0
Max. Pressure (PSI)
325 psi
Standards
ANSI/ASME B1.20.1
Seal Material
Buna-N
Max. Temp. (F)
250 Degrees F
Chamber Material
Polysulfone
Accuracy (%)
+/-5.0 Full Scale
Display Type
Scale
Product Type
Flow Meter
Media Temperature - Maximum
250 Degrees F
Mounting Orientation
Universal
Media Temperature - Minimum
32 Degrees F
Viscosity - Maximum
500 SUS
Includes Totalizer
No
Wetted Material
PSU
O-Ring Material
Buna-N
Unit Of Measure
Gallons, Liters
Compatible Flow Material
Water
Flowmeter Type
Variable Area
Includes Pressure Gauge
No
Flow Rate - Minimum
0.5 gpm
Flow Rate - Maximum
4 gpm
Operating Pressure - Maximum
325 psi
Accuracy
+/-5%
Includes Flow Rate Adjustment Knob
No

Dimensions

For Pipe Size
1/2 in
Connection Size
1/2 in
Length (In.)
7 3/4 in
Height
1 1/2 in
Length
7.8 in
Width (In.)
1-1/2"
Width
1 1/2 in
Height (In.)
1-1/2
Connection Size (In.)
1/2 FNPT
Overall Length
7.8 in
Overall Height
1.4 in
Overall Width
1.7 in
Wire Rope Length
7.8 in

Description

Mechanical Flowmeter, Product Type Flow Meter, Flowmeter Type Variable Area, Accuracy +/-5 Percent, Connection Size 1/2 in, Connection Type NPTF, Compatible Flow Material Water, Media Temperature - Maximum 250 Degrees F, Media Temperature - Minimum 32 Degrees F, Viscosity - Maximum 500 SUS, Voltage - Maximum Not Applicable, Housing Material PSU, Rotor Material Not Applicable, O-Ring Material Buna-N, Seal Material Buna-N, Shaft Material Not Applicable, Wetted Material PSU
