Shop HEDLAND

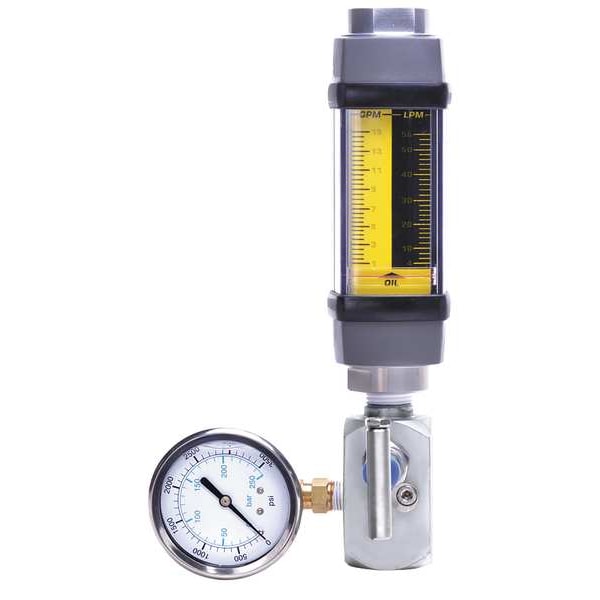

Oil Test Kit, GPM/LPM 1-15 / 4-56

  • Mfr # H601A-015-TK

  • Zoro # G1046884

product price:  $853.99
/ea
Free Shipping & Returns

Key Features

Connection Type
NPTF
Includes
Flowmeter, Load Valve, Pressure Gauge
Flow Range @ GPM/LPM
1 to 15 / 4 to 56
Pressure Drop - 100% Flow (PSI)
155.0 psi
Max. Pressure (PSI)
3500
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
H601A-015-TK
Zoro #
G1046884
UPC #
-
Country of Origin
United States

Dimensions

Connection Size
1/2 in
For Pipe Size
1/2 in
Connection Size (In.)
1/2 FNPT
Overall Height
2.4 in
Overall Width
2.1 in
Overall Length
10.3 in

Details

Item
Mechanical Flowmeter
Connection Type
NPTF
Includes
Flowmeter, Load Valve, Pressure Gauge
Flow Range @ GPM/LPM
1 to 15 / 4 to 56
Pressure Drop - 100% Flow (PSI)
155.0 psi
Max. Pressure (PSI)
3500
Pressure Drop - 50% Flow (PSI)
39.0 psi
Wetted Materials
Aluminum
Fluid Temp. Range
-20 Degrees to 240 Degrees F
Flow Range
1 to 15 gpm
Seal Material
Viton
Max. Pressure
3,500 psi
Housing Material
Aluminum
Flow Material
Petroleum Fluids
Max. Viscosity
500 SUS
Standards
ANSI B2.2
Product Type
Test Kit
Accuracy
+/-2%
Includes Flow Rate Adjustment Knob
No
Unit Of Measure
Gallons, Liters
Flow Rate - Minimum
1 gpm
Compatible Flow Material
Petroleum Fluids
O-Ring Material
Viton
Media Temperature - Minimum
-20 Degrees F
Flowmeter Type
Variable Area
Includes Pressure Gauge
No
Flow Rate - Maximum
15 gpm
Includes Totalizer
No
Display Type
Scale
Media Temperature - Maximum
240 Degrees F
Viscosity - Maximum
500 SUS
Operating Pressure - Maximum
3,500 psi
Mounting Orientation
Universal
Wetted Material
Aluminum

Description

Mechanical Flowmeter, Product Type Test Kit, Flowmeter Type Variable Area, Accuracy +/-2 Percent, Connection Size 1/2 in, Connection Type NPTF, Compatible Flow Material Petroleum Fluids, Media Temperature - Maximum 240 Degrees F, Media Temperature - Minimum -20 Degrees F, Viscosity - Maximum 500 SUS, Voltage - Maximum Not Applicable, Housing Material Aluminum, Rotor Material Not Applicable, O-Ring Material Viton, Seal Material Viton, Shaft Material Not Applicable, Wetted Material Aluminum

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
