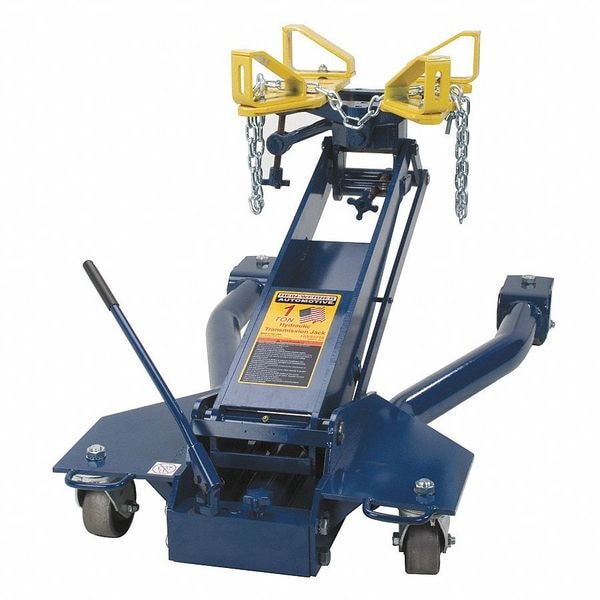

Floor Style Transmission Jack, 2000 Lb

  • Mfr # HW93718
  • Zoro # G2877926
product price:
$
3,802.99
/ea
Additional $150.00 delivery surcharge applies per item.
See details

Key Features

Type
Automotive
Includes
Chains
Features
Wishbone Design
Standards
ANSI/ASME PALD
Max. Height (In.)
45 1/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HW93718
Zoro #
G2877926
UPC #
047077050361
Country of Origin
United States

Dimensions

Max. Height (In.)
45 1/4 in
Min. Height (In.)
10 1/4 in
Lifting Height Max. (In.)
44 3/4 in
Lifting Height Min. (In.)
10 1/4 in
Height
44 3/4 in
Width
28 1/4 in
Length (In.)
47 3/8 in
Base Size (In.)
28 1/4 in x 47 1/2 in
Base Width
28 1/4 in
Base Length
47 1/2 in
Overall Width
28 1/4 in
Maximum Lift Height
44 3/4 in
Minimum Lift Height
10 1/4 in
Overall Length
47 19/50 in
Minimum Height
10 1/4 in
Overall Height
44 3/4 in
Wire Rope Length
47 19/50 in
Length
47 19/50 in
Fits Chest Size
Wishbone Design

Details

Type
Automotive
Includes
Chains
Features
Wishbone Design
Standards
ANSI/ASME PALD
Head
Can Be Tilted Forward and Back and Side to Side for Optimum Alignment of Transmission Bolt Patterns and Pins
Lifting Capacity (Lb.)
2,000 lb
Tilt Capacity Rear
39.0 Degrees
Tilt Capacity Side
13 Degrees
Item
Transmission Jack
Lifting Range
10 1/4 in to 44 3/4 in
Tilt Capacity Front
44.0 Degrees
Load Capacity
1 ton
Lifting Actuator
Manual Handle
Jack Type
Transmission Jack
Platform Tilt Angle
Forward: 27.70 Degrees , Rear: 32 Degrees , Side: 13 Degrees
For Lifting
Heavy-Duty Transmissions
Body Material
Steel
Caster Type
Swivel
Securing Mechanism
Chain
Power Source
Hydraulic
Power Source - TS Only
Hydraulic
Power Source - old
Hydraulic

Description

Transmission Jack, Power Source Hydraulic, Load Capacity 1 ton, Body Material Steel, Lifting Actuator Manual Handle, Minimum Lift Height 10 1/4 in, Maximum Lift Height 44 3/4 in, Securing Mechanism Chain, For Lifting Heavy-Duty Transmissions, Jack Type Transmission Jack, Standards ANSI/ASME PALD, Base Length 47 1/2 in, Base Width 28 1/4 in, Caster Type Swivel, Features Wishbone Design, Includes Chains, Minimum Height 10 1/4 in
