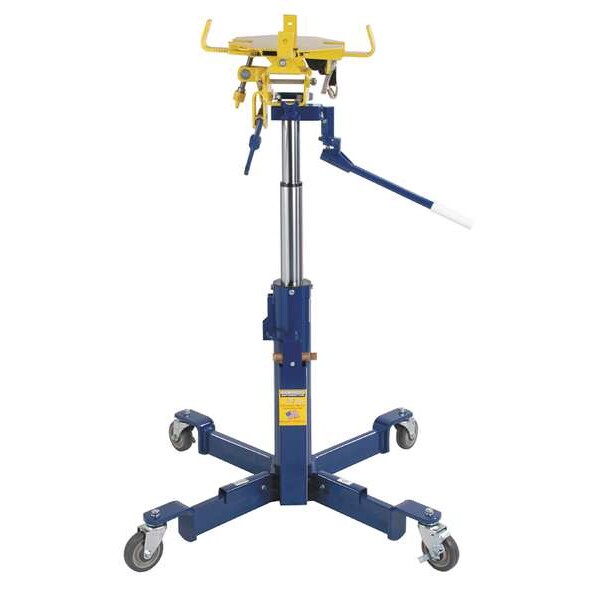

Hein-Werner Telescopic Transmission Jack, 1000 Lb HW93720

This item is Discontinued.

Hein-Werner

Telescopic Transmission Jack, 1000 Lb (Discontinued)

Mfr # HW93720
Zoro # G2955827
UPC # 047077050378
Country of Origin United States
Category Transmission Jacks
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
HW93720
Zoro #
G2955827
UPC #
047077050378
Country of Origin
United States

Dimensions

Min. Height (In.)
39 7/8 in
Width
41 1/4 in
Lifting Height Max. (In.)
77 1/4 in
Length (In.)
41 1/4 in
Base Size (In.)
41 1/4 in x 41 1/4 in
Height
72 in
Max. Height (In.)
77 1/4 in
Lifting Height Min. (In.)
39 7/8 in
Base Length
41 in
Overall Length
41 1/4 in
Maximum Lift Height
77 1/4 in
Minimum Lift Height
39 7/8 in
Overall Height
72 in
Overall Width
41 1/4 in
Base Width
41 in
Minimum Height
34 1/2 in

Details

Type
Air/Hydraulic
Features
(4) Ratcheting Brackets
Air Pressure (PSI)
110 to 175 psi
Lifting Range
34 in to 72 in
Tilt Capacity Side
11 Degrees
Item
Transmission Lift
Tilt Capacity Rear
18.0 Degrees
Tilt Capacity Front
35.0 Degrees
Head
Can Be Tilted Forward and Back and Side to Side for Optimum Alignment of Transmission Bolt Patterns and Pins
Lifting Capacity (Lb.)
1,000 lb
Standards
ANSI/ASME PALD
Minimum Operating Pressure
110 psi
Platform Tilt Angle
Forward: 50 Degrees , Rear: 20 Degrees , Side: 11 Degrees
Handle Type
Crank Handle
Load Capacity
0.5 ton
Body Material
Steel
Lifting Actuator
Manual Handle
Jack Type
Transmission Jack
Maximum Operating Pressure
175 psi
Power Source
Hydraulic
Securing Mechanism
Nylon Strap

Description

The Hein-Werner HW93720 Telescopic Transmission Jack is a telescopic transmission lift that can be used for various automotive and industrial applications. This air/hydraulic transmission jack features a head that can be tilted forward and back, as well as side to side, for optimum alignment of the transmission bolt patterns and pins. The lifting range is 34 to 72 in., while the minimum height is 39 7/8 in.. The maximum height of this lift is 77 1/4 in., with a lifting height max. of 41 1/4 in.. It has an overall length of 41 1/4 in., base size of 41 1/4 x 41 1/4 in. and width of 41 1/4 in.. If you're looking for a reliable telescopic transmission lift, then you need the Hein-Werner HW93720.
