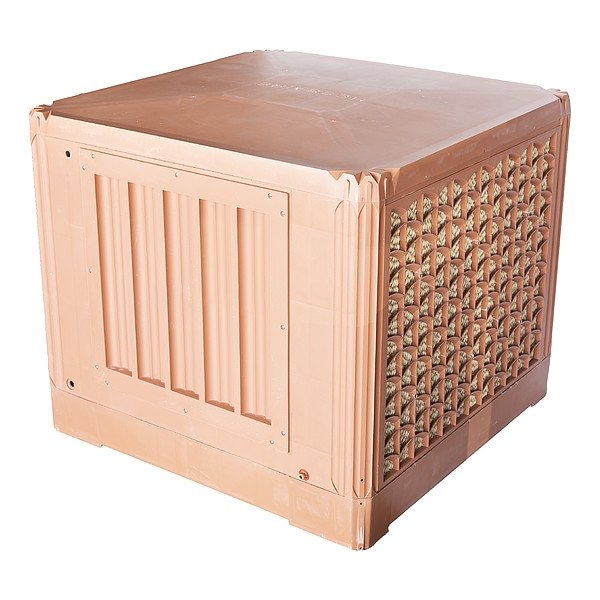

Ducted Evaporative Cooler, 6,800 cfm, 2,500 sq ft, 9 gal, 3/4 hp, Direct

  • Mfr # DX6800D

  • Zoro # G215852101


product price: $835.99
/ea
Free Shipping & Returns

Key Features

Pad Thickness
3 in
Water Connection
1/4 in
Duct Opening Length
20 in
Standards
Motor UL Recognized
Pump Voltage
115V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DX6800D
Zoro #
G215852101
UPC #
818015023385
Country of Origin
China

Dimensions

Pad Thickness
3 in
Duct Opening Length
20 in
Width
36 in
Depth
35 in
Height
32 in
Duct Opening Width
20 in
Pad Height
29 in
Pad Width
24 in

Details

Item
Ducted Evaporative Cooler
Water Connection
1/4 in
Standards
Motor UL Recognized
Pump Voltage
115V AC
Discharge
Down
Drive Type
Direct
Phase
Single
Water Capacity
9 gal
Fill Type
Water Connection Required
Amps
8.3/7.2 A
Operating Weight
170 lb
Color
Brown
Number of Speeds
2
Coverage Area - Minimum
1,500 sq ft
Power Source
Hardwired
Airflow
6,800 cfm
Duty Rating
Residential Grade
Hz
60 Hz
Compatible Media Manufacturer Model Number
CP6800
Number of Inlets for Outside Air
Multiple Inlet
HP
3/4 hp
Connection Type
NPT
Coverage Area - Maximum
2,500 sq ft
Drive Package With Motor
Factory Installed
Media
Kraft Paper
Voltage
115V AC

Description

Ducted Evaporative Cooler, Residential Grade, Drive Package With Motor Factory Installed, Drive Type Direct Drive, Pad Thickness 3 in, Media Type Kraft Paper, Number of Inlets for Outside Air Multiple Inlet, 3/4 hp HP, Amps 8.3/7.2 A, 115V AC, Pump Voltage 115V AC, Single Phase, 60 Hz Hz, Number of Speeds 2, Water Connection 1/4 in, Water Capacity 9 gal, Fill Type Water Connection Required

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
