  5. PANEL-MOUNT RECEPTACLE-FEMALE, 3 POLES + PE, CA 3 LD

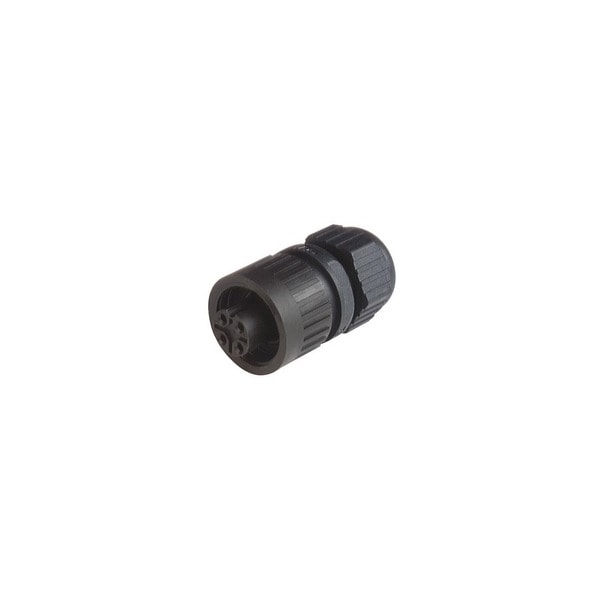

Hirschmann PANEL-MOUNT RECEPTACLE-FEMALE, 3 POLES + PE, CA 3 LD 934125100 - main

PANEL-MOUNT RECEPTACLE-FEMALE, 3 POLES + PE, CA 3 LD

  • Mfr # 934125100

  • Zoro # G1246692

product price:  $13.99
/ea

Key Features

Type
Connectors
Color
Black
Pollution Degree
3 acc. to DIN EN 60664-1 (VDE 0110-1)
Fastening Torque (Contact Screw)
M3: (25-30) Ncm
Strain-Relief
clamping cage
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
934125100
Zoro #
G1246692
UPC #
-
Country of Origin
Unknown

Details

Item
Connector
Type
Connectors
Color
Black
Pollution Degree
3 acc. to DIN EN 60664-1 (VDE 0110-1)
Fastening Torque (Contact Screw)
M3: (25-30) Ncm
Strain-Relief
clamping cage
Attachment Material
PA 66 GF
Rated Voltage
250 V DC, 400V AC
Note
Do not connect or disconnect under load.
Item Description
CA 3 LD
Rated Current*
10 A DC, 16 A AC (1.5 mm²)
Clearance / Creepage Distance
DIN EN 60664-1 (2008/01); VDE 0110-1
Contact Plating
Cu/Ag
Cable Gland
TR22
Housing Color
black
Product Sub Family
CA-Series
Type of Connection
screw terminal
Note Derating
Notice derating
Connector Type
Field Attachable
Contact Bearer Material
PA 66 GF
Suitable Cables
Ø 6 mm to Ø 12 mm, Gasket Ø 9 mm for cables with Ø 6 - 9 mm, Gasket Ø 12 mm for cables with Ø 9 - 12 mm
Operating Voltage
230 V DC, 400V AC
Housing Material
PA 66
Shielding
Unshielded
Temperature Range (Gasket)
-40°C to +90°C
Number of Pins
4(3+PE)
Accessories to Order Separately
831-532-400: CA00 SD 3, cap
Conductor Cross Section
0.5 mm² to 2.5 mm²
Attachment Type
Coupling Nut
Mating Connectors / Fitting to
934-124-100 CA 3 LS (field attachable, straight), 934-128-100 CA 3 W LS (field attachable, angled), 932-322-100 CA 3 GS (receptacle, straight)
Ambient Temperature (Operation)*
-40°C to +90°C, notice derating
Contact Bearer Color
black
Design Standard
DIN EN 61984 (VDE 0627)
Flammability Class (Attachment)
UL 94 V-0
Cable Gland Material
PA 66
Flammability Class (Contact Bearer)
UL 94 V-0
UL-File
E95522, Series CA 3
Protection Degree / IP Rating**
IP66, IP67
Contact Resistance
≤ 10 mOhm
Gasket Material
NBR
Connector Design
straight
Contact Base Material
CuZn
Type of Contact / Gender
female
Fastening Torque (Cable Gland)
TR22: min. 250 Ncm
Rated Impulse Voltage
6.0 kV
Protection Degree / IP Rating Note
* only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Rating
IP67
