  5. MIG Welder, Handler 190, Single-Phase, 220/230/240V AC, 25 to 190A DC, 30 %

This item is Discontinued.

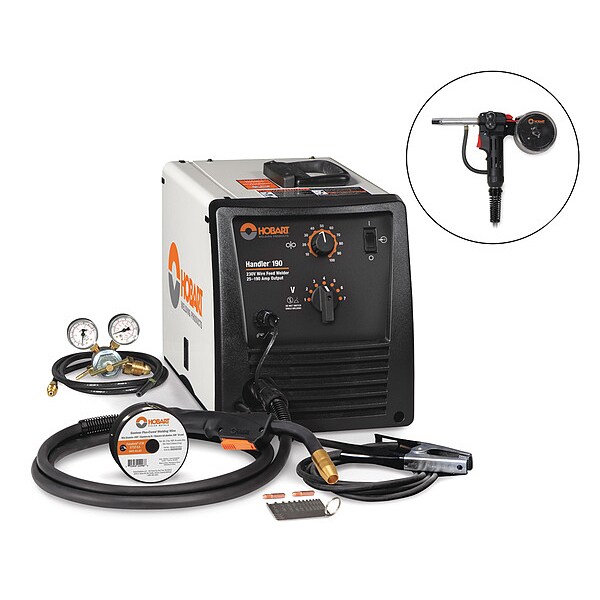

Hobart Welding Products MIG Welder, Handler 190, Single-Phase, 220/230/240V AC, 25 to 190A DC, 30 % 500554001

MIG Welder, Handler 190, Single-Phase, 220/230/240V AC, 25 to 190A DC, 30 % (Discontinued)

  • Mfr # 500554001
  • Zoro # G0811687
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
500554001
Zoro #
G0811687
UPC #
715959566636
Country of Origin
United States

Dimensions

Mild Steel - Material Thickness
24 ga to 5/16 in
Overall Width
10.63 in
Overall Depth
19.5 in
Overall Height
12.38 in
Wire Size
0.024 in, Flux 0.030 in to 0.035 in
For Minimum Material Thickness
16 ga (Aluminum), 24 ga (Mild Steel)
For Maximum Material Thickness
3/16 in (Aluminum), 5/16 in (Mild Steel)
Minimum Wire Diameter
0.024 in (Solid Wire), 0.030 in (Flux-Cored)
Maximum Wire Diameter
0.035 in (Aluminum), 0.035 in (Solid), 0.045 in (Flux-Cored)

Details

Item
MIG Welder
Series
Handler 190
Input Voltage
220/230/240V AC
Welded Material
Mild Steel
Phase
Single-Phase
Welding Processes
Flux-Cored Welding (FCAW), MIG Welding (GMAW)
Hz
60
Portability
Handheld Portable
Includes
0.030 in. Contact Tips, 10 ft. Work Cable with Clamp, Comfortable 10 ft (3m) HR-100 Welding Gun, Dual-Gauge Regulator with Gas Hose, Sample Spool of 0.030 in. Self-Shielded Flux Cored Welding Wire
Application
Maintenance/Repair, Metal Art, Auto Body, Farm/Ranch, Home Repair
Input Amps
20.5
Standards
CSA Certified
Features
7-Position Voltage Control, Infinite Wire Feed Speed, Spool Gun Ready, Built-In Wire Feeder with Quick-Release Drive Roll Lever, Spool Hub Assembly Accommodates 4 in or 8 in Spools, Polarity Changeover with Tip Holder, Quick Select Drive Roll, Built-In Gas Solenoid Valve and Dual-Gauge Regulator with Gas Hose
Rated Output
130A @ 21.5V DC
Duty Cycle
30 %
Output Range
25 to 190A DC
For Wire Type
Aluminum, Flux-Cored, Solid
Maximum Wire Feed Speed
740 in/min
For Material Type
Aluminum, Mild Steel, Stainless Steel
Input Frequency
60 Hz
Color
White
MIG Welding Minimum Output Current
25 A
Plug Type
6-50P
Welding Mode
CV
MIG Welding Maximum Output Current
190 A
Weight
68 lb
Minimum Wire Feed Speed
40 in/min
Power Cord Included
Yes
MIG Welding Output @ Duty Cycle
130 A @ 21.5 V, 30%
Polarity
DC
Amperage Range
25 to 190 A
Model
500554001

Description

MIG Welder, Series Handler 190, Input Voltage 220/230/240V AC, Phase Single-Phase, Welding Mode CV, Polarity DC, Input Frequency 60 Hz, Welding Processes Flux-Cored Welding (FCAW), MIG Welding (GMAW), For Wire Type Aluminum, Flux-Cored, Solid, Maximum Wire Diameter 0.035 in (Aluminum), 0.035 in (Solid), 0.045 in (Flux-Cored), Maximum Wire Feed Speed 740 in/min, Model 500554001, MIG Welding Output @ Duty Cycle 130 A @ 21.5 V, 30 Percent
