  13. Pushbutton Enclosure, 30mm, 4 Hole, Plastic
Shop All Push Button Enclosures
Hoffman

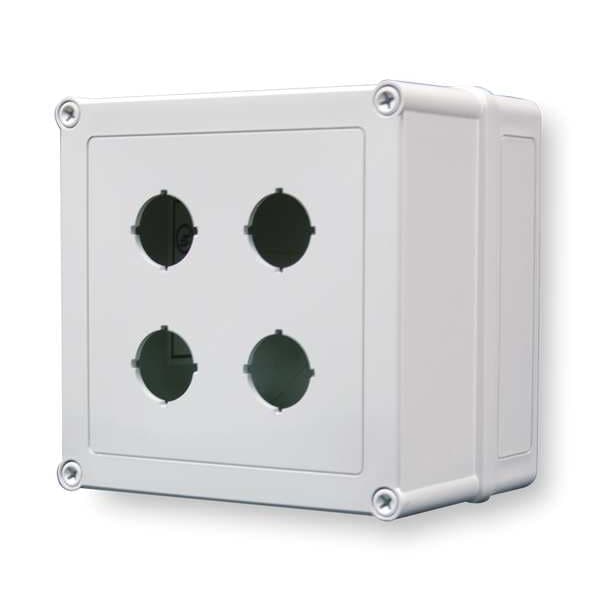

Pushbutton Enclosure, 30mm, 4 Hole, Plastic

product price: $66.85
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Number of Columns 2
  • Hole Size 30 mm
  • Material Polyester
  • Number of Holes 4
  • Conduit Size No Conduit Entrance Holes Provided
See all product information

Product Information

Dimensions

Hole Size 30 mm
Conduit Size No Conduit Entrance Holes Provided
Dimensions 6.65 in H x 6.65 in W x 4.72 in D
Height 6.65 in
Width 6.65 in
Depth 4.72 in
Height (H) (inch) 7
Depth (D) (inch) 5.02
Width (W) (inch) 7
Length 7.00 inch
Overall Height 7 in
Panel Cutout Diameter 30 mm
Compatible Conduit Size - Maximum No Conduit Entrance Holes Provided
Overall Width 7 in
Overall Depth 5 in

Details

Item Push Button Enclosure
Number of Columns 2
Material Polyester
Number of Holes 4
NEMA Rating 4x
Color Gray
Standards CSA C22.2 No. 94 File No. E192121, cUL, UL 508A, UL 508A File No. E192121
Includes Cover Corner Screws
Style 30.5 mm NEMA sized push-button holes and four non-metallic corner screws
Protection Rating NEMA Type 3
Finish Smooth Low Gloss
Color Code RAL 7035
NEMA Enclosure Rating 4X

Description

Pushbutton Enclosure, Number of Columns 2, Number of Holes 4, NEMA Rating 4X, Conduit Size No Conduit Entrance Holes Provided, Dimensions 6.65 in H x 6.65 in W x 4.72 in D, Hole Size 30 mm, Material Plastic, Height 6.65 in, Width 6.65 in, Depth 4.72 in, Color Gray, Includes -, Mounting Style -, Standards IP66 Rating, ULType 3, 3R, 4, 4X, 12 And 13
