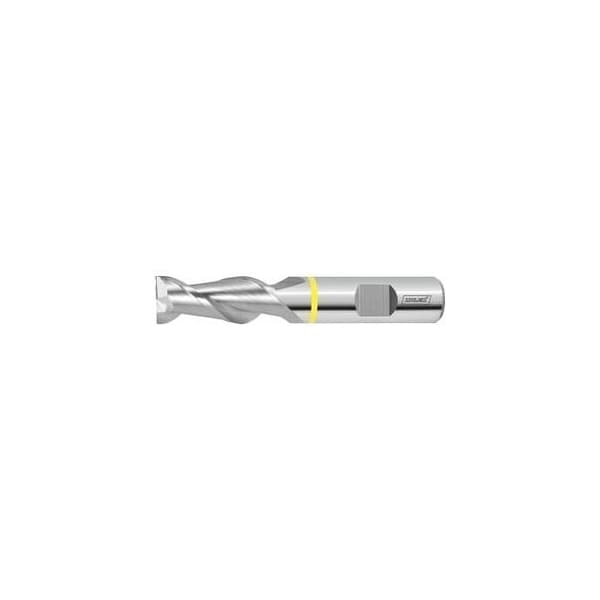

Carbide End Mill, Uncoated, 2 mm
Mfr # 201280 2
Zoro # G614375560
product price: $26.49
/eaKey Features
End Mill Style
Chamfer
Maximum Cutting Depth Ap Max When Side Milling
8 mm
Shank Tolerance
h6
Maximum Cutting Depth Ap Max When Slot Milling From Solid
1 mm
Min. Cutting Depth
0.05 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
201280 2
Zoro #
G614375560
UPC #
-
Country of Origin
Germany
Dimensions
Maximum Cutting Depth Ap Max When Side Milling
8 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
1 mm
Min. Cutting Depth
0.05 mm
Milling Diameter
2 mm
Length of Cut
8 mm
Overall Length
57 mm
Shank Dia.
6 mm
Tolerance Nominal Diameter
h10
Corner Chamfer Width at 45°
0.05 mm
Description
Stronger cutting edges. Dimensions similar to DIN 6527. Through-coolant: no Tolerance nominal Dia. h10 No. of teeth Z: 2 Helix angle: 45 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 2 Flute length Lc: 8 mm Overall length L: 57 mm Shank Dia. Ds: 6 mm Corner chamfer width at 45 Deg: 0.05 mm Feed fz for slot milling in short-chipping aluminium: 0.008 mm
