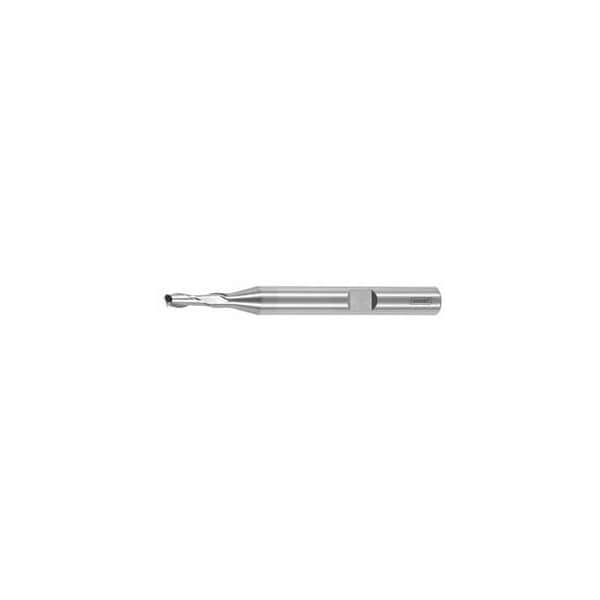

Carbide End Mill, Uncoated, 3 mm
Mfr # 201310 3
Zoro # G714376375
product price:Â $21.45
/eaKey Features
Milling Diameter
3 mm
Overall Length
57 mm
Number of Flutes
2
End Mill Style
Chamfer
Finish
uncoated
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 201310 3
- Zoro #
- G714376375
- UPC #
- -
- Country of Origin
- China
Dimensions
- Milling Diameter
- 3 mm
- Overall Length
- 57 mm
- Length of Cut
- 8 mm
- Tolerance Nominal Diameter
- e8
- Corner Chamfer Width at 45°
- 0.13 mm
- Maximum Cutting Depth Ap Max When Slot Milling From Solid
- 1.5 mm
- Maximum Cutting Depth Ap Max When Side Milling
- 8 mm
- Min. Cutting Depth
- 0.3 mm
- Shank Dia.
- 6 mm
Description
Dimensions similar to DIN 6527. Note: Successor product for No. 201640 and 201405. Through-coolant: no Tolerance nominal Dia. e8 No. of teeth Z: 2 Helix angle: 30 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 2 Flute length Lc: 8 mm Overall length L: 57 mm Shank Dia. Ds: 6 mm Shank form: HB Corner chamfer width at 45 Deg: 0.13 mm
