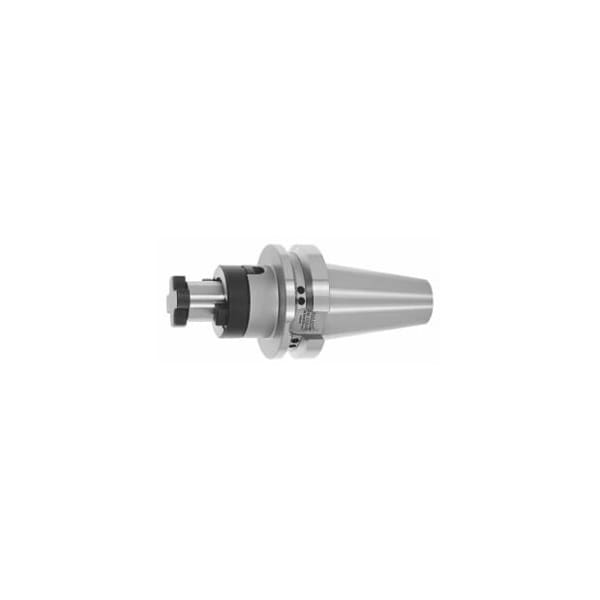

Combination Face Mill Adapter, Form A, BT 40 Short, Clamping Diameter: 22mm
Mfr # 302897 22
Zoro # G414776475
product price: $88.19
/ea
Free Shipping & Returns
Key Features
Clamping Dia.
22 mm
Projection
55 mm
Spare Drive Ring No. 309870
22
Outside Dia.
40 mm
Machining Strategy
HPC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
302897 22
Zoro #
G414776475
UPC #
-
Country of Origin
India
Dimensions
Clamping Dia.
22 mm
Outside Dia.
40 mm
Spigot Dia.
22 mm
Taper Size
BT40
Details
Item
Milling cutter spigot
Projection
55 mm
Spare Drive Ring No. 309870
22
Machining Strategy
HPC
Shape
A
Balance Quality
G 6.3 at 18,000 rpm
Spare Milling Cutter Lock Screw No. 309860 / 309861
22
Concentricity
≤ 5 µm
Standards
DIN 6358
Suitable Toggle Spanner No. 309840
22
Description
Taper shank, spigots, and contact surfaces ground on collar. All shanks fine bead blasted. Balancing quality G6.3 / 18-000 rpm. Form A. Application: With drive key for face mills with longitudinal slot, e.g. DIN 841. With drive ring for face mills with crosswise slot DIN 1880 and cutter heads DIN 1830. Supplied with: Drive key, face mill drive ring, and lock screw. Optional extras: Pull studs PS No. 308760 308802. Special toggle wrench No. 309840. Note: Internal cooling available only with suitable tightening screw No. 309861. Overhang dimension A: 55 mm External Dia D: 40 mm Spare milling cutter lock screw No. 309860 / 309861: 22 Spare drive ring No. 309870: 22 Suitable toggle wrench No. 309840: 22
