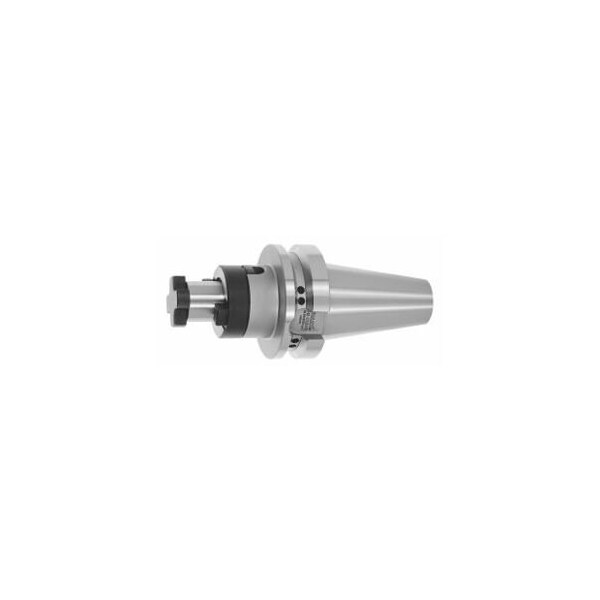

Combination Face Mill Adapter, Form A, BT 40 Short, Clamping Diameter: 32mm
Mfr # 302897 32
Zoro # G014776479
product price:Â
$
96.99
/ea
Key Features
Projection
60 mm
Clamping Dia.
32 mm
Taper Size
BT40
Standards
DIN 6358
Machining Strategy
HPC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 302897 32
- Zoro #
- G014776479
- UPC #
- -
- Country of Origin
- India
- Projection
- 60 mm
- Standards
- DIN 6358
- Machining Strategy
- HPC
- Item
- Milling cutter spigot
- Balance Quality
- G 6.3 at 18,000 rpm
- Spare Milling Cutter Lock Screw No. 309860 / 309861
- 32
- Shape
- A
- Concentricity
- ≤ 5 µm
- Suitable Toggle Spanner No. 309840
- 32
- Spare Drive Ring No. 309870
- 32
Description
Taper shank, spigots, and contact surfaces ground on collar. All shanks fine bead blasted. Balancing quality G6.3 / 18-000 rpm. Form A. Application: With drive key for face mills with longitudinal slot, e.g. DIN 841. With drive ring for face mills with crosswise slot DIN 1880 and cutter heads DIN 1830. Supplied with: Drive key, face mill drive ring, and lock screw. Optional extras: Pull studs PS No. 308760 308802. Special toggle wrench No. 309840. Note: Internal cooling available only with suitable tightening screw No. 309861. Overhang dimension A: 60 mm External Dia D: 58 mm Spare milling cutter lock screw No. 309860 / 309861: 32 Spare drive ring No. 309870: 32 Suitable toggle wrench No. 309840: 32
