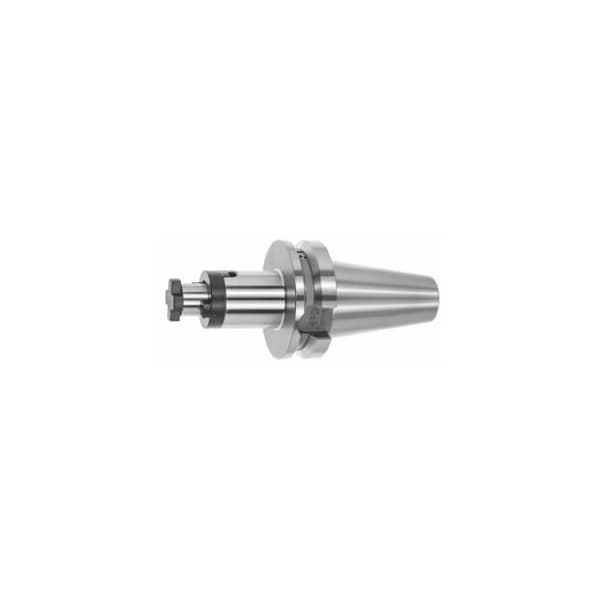

Combination Face Mill Adapter, Form A, BT 50, Projection: 100, Clamping Diameter: 22mm
- Mfr # 302957 22
- Zoro # G414776437
product price:Â
$
140.99
/ea
Free Shipping & Returns
Key Features
Projection
100 mm
Suitable Toggle Spanner No. 309840
22
Concentricity
≤ 5 µm
Spare Drive Ring No. 309870
22
Taper Size
BT50
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 302957 22
- Zoro #
- G414776437
- UPC #
- -
- Country of Origin
- India
- Projection
- 100 mm
- Suitable Toggle Spanner No. 309840
- 22
- Concentricity
- ≤ 5 µm
- Spare Drive Ring No. 309870
- 22
- Machining Strategy
- HPC
- Standards
- DIN 6358
- Spare Milling Cutter Lock Screw No. 309860 / 309861
- 22
- Shape
- ADB
- Balance Quality
- G 6.3 at 15,000 rpm
- Item
- Milling cutter spigot
Dimensions
- Taper Size
- BT50
- Clamping Dia.
- 22 mm
- Spigot Dia.
- 22 mm
- Outside Dia.
- 40 mm
Description
Taper shank, spigots, and contact surfaces ground on collar. All shanks fine bead blasted. Balancing quality G6.3 / 18-000 rpm. Form A. Application: With drive key for face mills with longitudinal slot, e.g. DIN 841. With drive ring for face mills with crosswise slot DIN 1880 and cutter heads DIN 1830. Supplied with: Drive key, face mill drive ring, and lock screw. Optional extras: Pull studs PS No. 308760 308802. Special toggle wrench No. 309840. Note: Internal cooling available only with suitable tightening screw No. 309861. Overhang dimension A: 100 mm External Dia D: 40 mm Spare milling cutter lock screw No. 309860 / 309861: 22 Spare drive ring No. 309870: 22 Suitable toggle wrench No. 309840: 22
