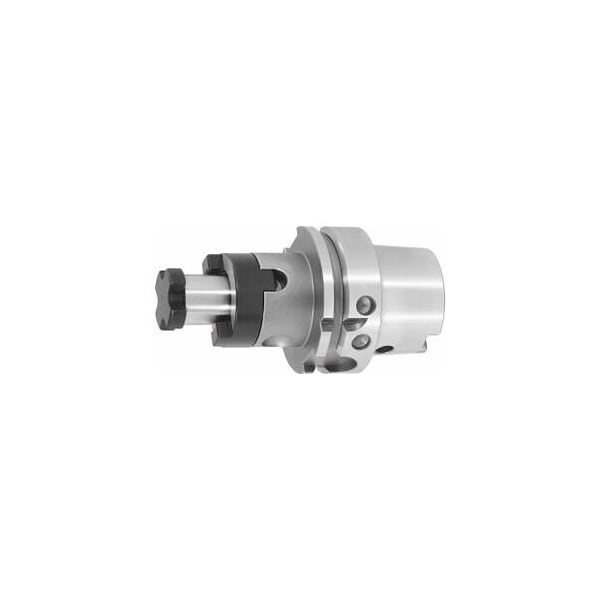

Combination Face Mill Adapter, HSK-A 100, Projection: 100, Clamping Diameter: 32mm
Mfr # 306277 32
Zoro # G614776442
product price: $285.99
/ea
Free Shipping & Returns
Key Features
Concentricity
≤ 6 µm
Shape
A
Spigot Dia.
32 mm
Taper Size
HSK100A
Suitable Toggle Spanner No. 309840
32
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
306277 32
Zoro #
G614776442
UPC #
-
Country of Origin
China
Dimensions
Spigot Dia.
32 mm
Taper Size
HSK100A
Clamping Dia.
27 mm
Milling Mandrel Length
38 mm
Outside Dia.
58 mm
Details
Concentricity
≤ 6 µm
Shape
A
Suitable Toggle Spanner No. 309840
32
Machining Strategy
HPC
Balance Quality
G 6.3 at 20,000 rpm
Projection
100 mm
Spare Drive Ring No. 309870
32
Item
Milling cutter spigot
Spare Milling Cutter Lock Screw No. 309860 / 309861
32
Description
With RFID/Balluffchip bore. HSK mating faces machined. Balancing quality G 6.3 at 20000 rpm. Application: For clamping shell end mills and milling cutter heads with longitudinal or transverse groove. Supplied with: Incl. drive key, face mill drive ring, and lock screw No. 309860. Optional extras: Coolant tube No. 309880, socket wrench No. 309890, toggle wrench No. 309840, milling cutter lock screw for internal coolant supply No. 309861. Note: Internal cooling available only with suitable tightening screw No. 309861. Overhang dimension A: 100 mm External Dia D: 58 mm Milling mandrel length L3 with drive ring: 24 mm Milling mandrel length L4: 38 mm Spare milling cutter lock screw No. 309860 / 309861: 32 Spare drive ring No. 309870: 32
