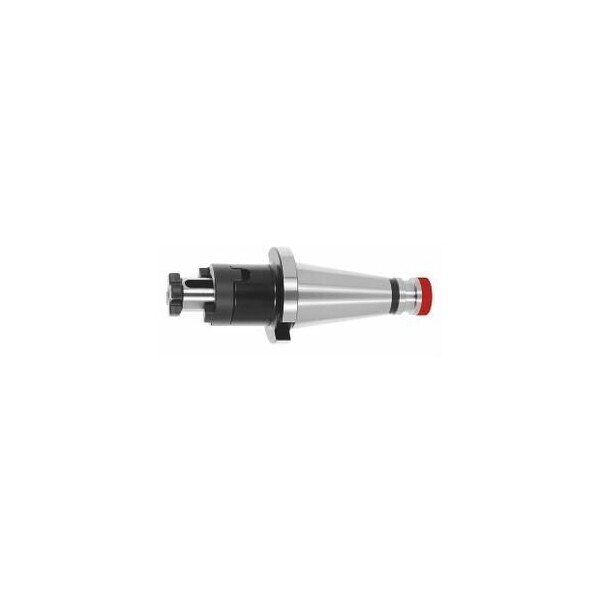

Combination Face Mill Adapter, SK 40, Projection: 52, Clamping Diameter: 16mm
Mfr # 302505 16
Zoro # G514776474
product price:Â $101.99
/ea
Free Shipping & Returns
Key Features
Spare Drive Ring No. 309870
16
Suitable Toggle Spanner No. 309840
16
Taper Size
SK40
Standards
DIN 2080; DIN 6358
Milling Mandrel Length
27 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 302505 16
- Zoro #
- G514776474
- UPC #
- -
- Country of Origin
- China
Dimensions
- Taper Size
- SK40
- Milling Mandrel Length
- 27 mm
- Thread Size
- M16
- Overall Length
- 162 mm
- Clamping Dia.
- 16 mm
Details
- Spare Drive Ring No. 309870
- 16
- Suitable Toggle Spanner No. 309840
- 16
- Standards
- DIN 2080; DIN 6358
- Concentricity
- ≤ 6 µm
- Projection
- 52 mm
- Spare Milling Cutter Lock Screw No. 309860 / 309861
- 16
- Item
- Milling cutter spigot
Description
Internal thread for manual clamping. Application: With drive key for milling cutters with longitudinal groove, e.g. DIN 841. With face mill drive ring for milling cutters with transverse slots-DIN 1880. Supplied with: Drive key, face mill drive ring, and lock screw. Optional extras: Special toggle wrench No. 309840. Concentricity: 6 um Overhang dimension A: 52 mm Overall length L: 162 mm Milling mandrel length L3 with drive ring: 17 mm Milling mandrel length L4: 27 mm Thread M: M16 Spare milling cutter lock screw No. 309860 / 309861: 16
