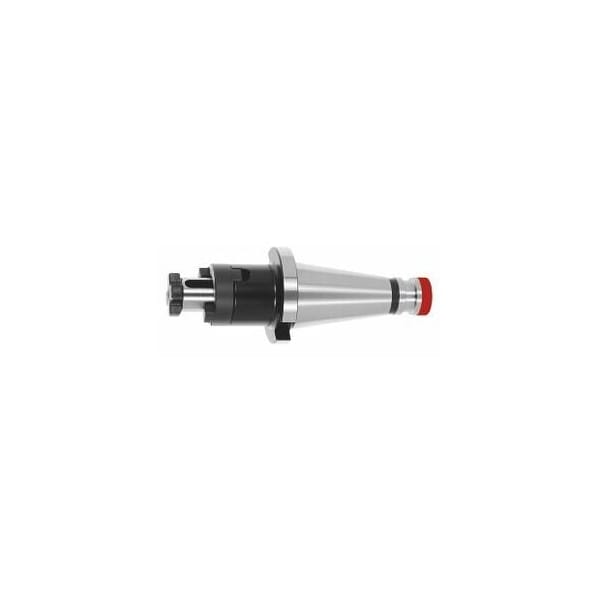

Combination Face Mill Adapter, SK 40, Projection: 52, Clamping Diameter: 22mm
Mfr # 302505 22
Zoro # G014776486
product price:Â $103.99
/ea
Free Shipping & Returns
Key Features
Milling Mandrel Length
19 mm
Taper Size
SK40
Standards
DIN 2080; DIN 6358
Spare Drive Ring No. 309870
22
Thread Size
M16
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 302505 22
- Zoro #
- G014776486
- UPC #
- -
- Country of Origin
- China
Dimensions
- Milling Mandrel Length
- 19 mm
- Taper Size
- SK40
- Thread Size
- M16
- Clamping Dia.
- 22 mm
- Overall Length
- 164 mm
Details
- Item
- Milling cutter spigot
- Standards
- DIN 2080; DIN 6358
- Spare Drive Ring No. 309870
- 22
- Spare Milling Cutter Lock Screw No. 309860 / 309861
- 22
- Concentricity
- ≤ 6 µm
- Projection
- 52 mm
- Suitable Toggle Spanner No. 309840
- 22
Description
Internal thread for manual clamping. Application: With drive key for milling cutters with longitudinal groove, e.g. DIN 841. With face mill drive ring for milling cutters with transverse slots-DIN 1880. Supplied with: Drive key, face mill drive ring, and lock screw. Optional extras: Special toggle wrench No. 309840. Concentricity: 6 um Overhang dimension A: 52 mm Overall length L: 164 mm Milling mandrel length L3 with drive ring: 19 mm Milling mandrel length L4: 31 mm Thread M: M16 Spare milling cutter lock screw No. 309860 / 309861: 22
