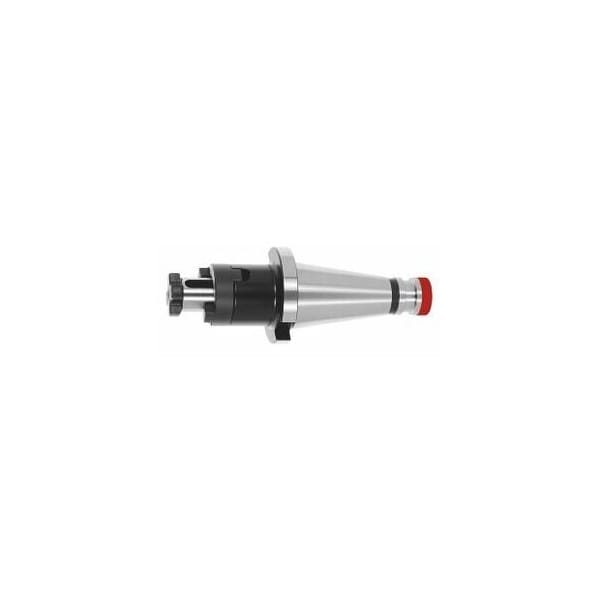

Combination Face Mill Adapter, SK 40, Projection: 52, Clamping Diameter: 32mm
- Mfr # 302505 32
- Zoro # G614776404
product price:Â
$
116.99
/ea
Free Shipping & Returns
Key Features
Clamping Dia.
32 mm
Milling Mandrel Length
38 mm
Thread Size
M16
Standards
DIN 2080; DIN 6358
Suitable Toggle Spanner No. 309840
32
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 302505 32
- Zoro #
- G614776404
- UPC #
- -
- Country of Origin
- China
Dimensions
- Clamping Dia.
- 32 mm
- Milling Mandrel Length
- 38 mm
- Thread Size
- M16
- Overall Length
- 169 mm
- Taper Size
- SK40
Details
- Standards
- DIN 2080; DIN 6358
- Suitable Toggle Spanner No. 309840
- 32
- Concentricity
- ≤ 6 µm
- Item
- Milling cutter spigot
- Projection
- 52 mm
- Spare Drive Ring No. 309870
- 32
- Spare Milling Cutter Lock Screw No. 309860 / 309861
- 32
Description
Internal thread for manual clamping. Application: With drive key for milling cutters with longitudinal groove, e.g. DIN 841. With face mill drive ring for milling cutters with transverse slots-DIN 1880. Supplied with: Drive key, face mill drive ring, and lock screw. Optional extras: Special toggle wrench No. 309840. Concentricity: 6 um Overhang dimension A: 52 mm Overall length L: 169 mm Milling mandrel length L3 with drive ring: 24 mm Milling mandrel length L4: 38 mm Thread M: M16 Spare milling cutter lock screw No. 309860 / 309861: 32
