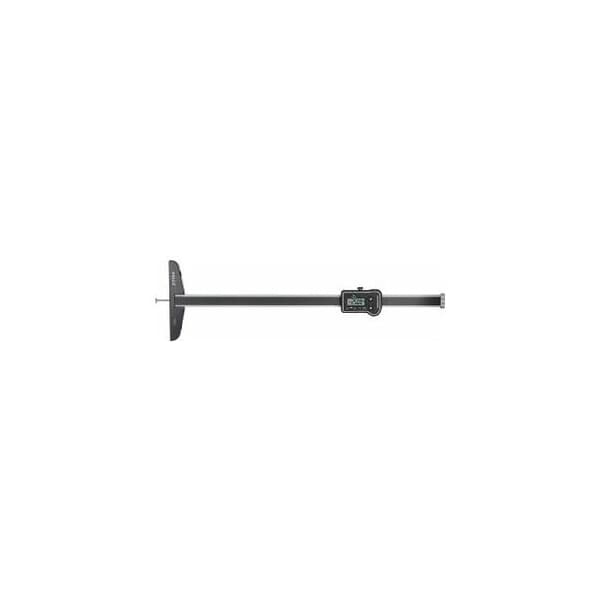

Digital Groove Depth Gage, Measuring Range: 800 mm

  • Mfr # 418755 800

  • Zoro # G314555828

product price:  $1,190.99
/ea
Free Shipping & Returns

Key Features

Rod Dia.
6 mm
Batteires Included
1
Power Supply
Battery-powered
Measuring Range
0 mm - 800 mm
Test Certificate
Manufacturer's test certificate
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
418755 800
Zoro #
G314555828
UPC #
-
Country of Origin
Germany

Dimensions

Rod Dia.
6 mm
Disc Anvil Dia.
20 mm

Details

Item
Groove depth gauge
Range
800 mm
Batteires Included
1
Power Supply
Battery-powered
Measuring Range
0 mm - 800 mm
Test Certificate
Manufacturer's test certificate
Packaging
sturdy box
Standards
Manufacturer's standard
Reversible Reading
mm / inch
Article no of the battery / rechargeable battery fitted
081560 LR44
Cross-Section Measuring Beam
23.5 × 9 mm
Error Limit
0.06 mm
Measurement Technology
Digital

Description

Digital depth gage for measuring slots, grooves, recesses, offsets and holes. Weight-saving construction of aluminium profile reinforced with steel, with anodised surfaces. Optimum guidance and sliding characteristics due to internal double Vee guides. Various different measuring tips M2.5 can be screwed into the measuring rod. Aluminium profile with steel reinforcement and anodised surface. Double Vee guides. Exchangeable measuring tips M2.5. Application: Measuring cut-outs, grooves, holes and offsets. Supplied with: Measuring tip with steel ball, disc insert No. 434900 size 11, measurement heads 150 mm and 350 mm, battery No. 081560 size LR44.
