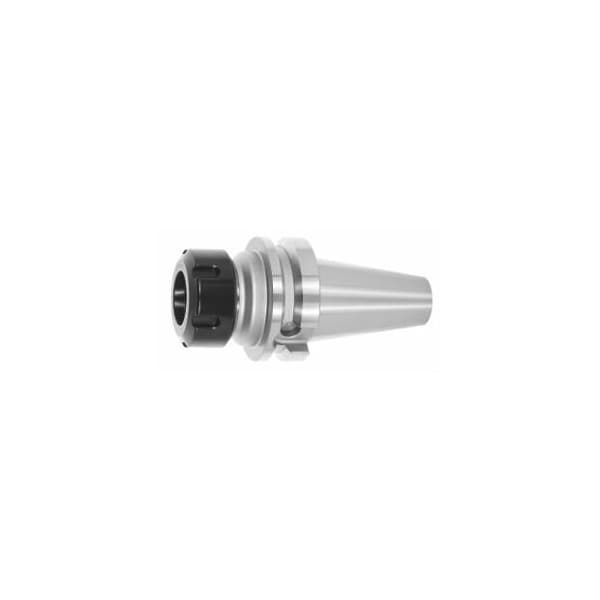

ER Collet Chuck, Form AD, BT 40 Short, for ER Collet: 25
Mfr # 302757 25
Zoro # G114773576
product price: $123.99
/ea
Free Shipping & Returns
Key Features
ER Chuck Key
25
Machining Strategy
HSC
Balance Quality
G 6.3 at 18,000 rpm
Taper Size
BT40
Projection
70 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
302757 25
Zoro #
G114773576
UPC #
-
Country of Origin
India
Dimensions
Taper Size
BT40
Clamping Dia.
1-16 mm
Outside Dia.
42 mm
Details
Item
Collet chuck
ER Chuck Key
25
Machining Strategy
HSC
Balance Quality
G 6.3 at 18,000 rpm
Projection
70 mm
Spare ER Clamping Nut
25
Shank Shape
AD
Concentricity
≤ 3 µm
Clamping Range
1 mm
Description
External and internal taper ground. All shanks fine bead blasted. Balancing quality G6.3 / 18-000 rpm. High-quality precision clamping nut. Application: For clamping tools with parallel shank in collets to DIN 6499 Form A and B. Supplied with: ER clamping nut. Optional extras: ER collets No. 308881 309434, ER chuck keys No. 309680 - 309745 or No. 613300. Pull studs PS No. 308760 308802. Pull stud wrenches No. 308820, 308835. Note: Matching clamping nut No. 309580 or 309610. Machining strategy: HSC Clamping range: 1 16 mm Overhang dimension A: 70 mm External Dia D: 42 mm Spare ER clamping nut: 25 ER chuck key: 25
