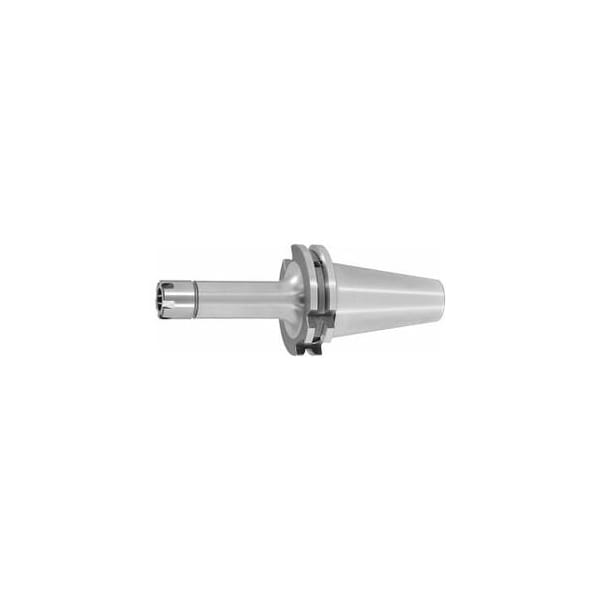

ER Collet Chuck, Mini/Slim, Form AD, SK 40, Projection: 100, for ER Collet: 11
Mfr # 300651 11
Zoro # G814773852
product price:Â
$
160.99
/ea
Free Shipping & Returns
Key Features
Shank Shape
AD
Taper Size
SK40
Overall Length
70 mm
Collet Series
ER11
Projection
100 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 300651 11
- Zoro #
- G814773852
- UPC #
- -
- Country of Origin
- India
- Item
- Collet chuck
- Shank Shape
- AD
- Collet Series
- ER11
- Projection
- 100 mm
- Clamping Range
- 0.5 mm
- Suitable Chuck Key No. 309740
- 11
- Balance Quality
- G 6.3 at 18,000 rpm
- Machining Strategy
- HSC
- Standards
- ISO 7388-1
- Concentricity
- ≤ 3 µm
Description
Clamping nut fine balanced for HSC. ER11 through bored. Shanks hard turned smooth cutting action!. With Balluffchip bore as standard. Application: For clamping tools with plain shank to DIN 6499. Supplied with: High speed ER mini nut No. 309650. Optional extras: ER collets No. 308881 309434, ER lock wrench No. 309740. Pull studs PS No. 308600 308806. PS chuck key No. 308820, 308830. Machining strategy: HSC Clamping range: 0.5 7 mm Overhang dimension A: 100 mm External Dia D: 16 mm Suitable chuck key No. 309740: 11
