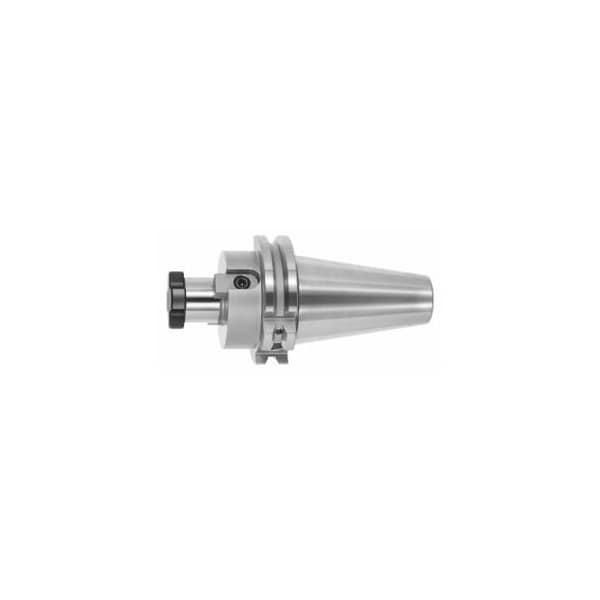

Face Mill Arbor, Form A, SK 40, Projection: 100, Clamping Diameter: 32mm
Mfr # 301027 32
Zoro # G014774741
product price:Â $135.99
/ea
Free Shipping & Returns
Key Features
Projection
100 mm
Standards
ISO 7388-1; DIN 6357
Balance Quality
G 6.3 at 15,000 rpm
Milling Mandrel Length
24 mm
Concentricity
≤ 5 µm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 301027 32
- Zoro #
- G014774741
- UPC #
- -
- Country of Origin
- China
Dimensions
- Milling Mandrel Length
- 24 mm
- Taper Size
- SK40
- Spigot Dia.
- 32 mm
- Outside Dia.
- 78 mm
- Clamping Dia.
- 27 mm
Details
- Projection
- 100 mm
- Standards
- ISO 7388-1; DIN 6357
- Balance Quality
- G 6.3 at 15,000 rpm
- Concentricity
- ≤ 5 µm
- Spare Milling Cutter Lock Screw No. 309860 / 309861
- 32
- Machining Strategy
- HPC
- Shank Shape
- ADB
- Suitable Toggle Spanner No. 309840
- 32
- Item
- Milling head arbor
Description
Taper shank, spigot, and all contact surfaces are ground at the collar. Short series. Increased collar contact surface. With RFID/Balluffchip bore. All shanks fine bead blasted. Supplied with: Lock screw. Machining strategy: HPC Overhang dimension A: 100 mm External Dia D: 78 mm Milling mandrel length L4: 24 mm Spare Milling cutter lock screw No. 309860 / 309861: 32 Suitable toggle wrench No. 309840: 32
