Shop HOLEX

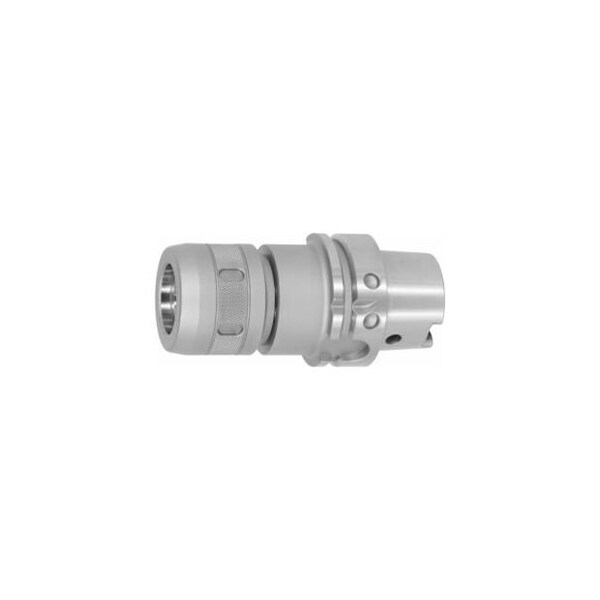

Heavy-duty Chuck, HSK-A 100, Clamping Diameter: 32mm

  • Mfr # 305528 32

  • Zoro # G914825420

product price:  $650.99
/ea
Free Shipping & Returns

Key Features

Suitable C-Hook (Pin) Spanner No. 628400
68 / 75
Projection
135 mm
Balance Quality
G 6.3 at 15,000 rpm
Collet Outer Dia.
66 mm
Clamping Force (Lb.)
900 N·m
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
305528 32
Zoro #
G914825420
UPC #
-
Country of Origin
India

Dimensions

Collet Outer Dia.
66 mm
Clamping Dia.
32 mm

Details

Item
Heavy-duty chuck
Suitable C-Hook (Pin) Spanner No. 628400
68 / 75
Projection
135 mm
Balance Quality
G 6.3 at 15,000 rpm
Clamping Force (Lb.)
900 N·m
Taper
HSK100A
Shape
A
Machining Strategy
HPC
Concentricity
≤ 5 µm

Description

Low friction due to needle bearings. Protected with anti-corrosion coating. Dust-tight and watertight. With RFID/Balluffchip bore. Very high clamping force prolongs tool life and improves surface quality. Clamping force up to 900 Nm. Application: For clamping tools with plain shanks. Supplied with: Clamping nut Optional extras: Coolant pipe No. 309880, Collets No. 309566 309570 and No. 309575 309576. Machining strategy: HPC Overhang dimension A: 135 mm Collet outer Dia D: 66 mm Clamping force up to: 900 Nm Suitable C-hook pin wrench No. 628400: 68 / 75
