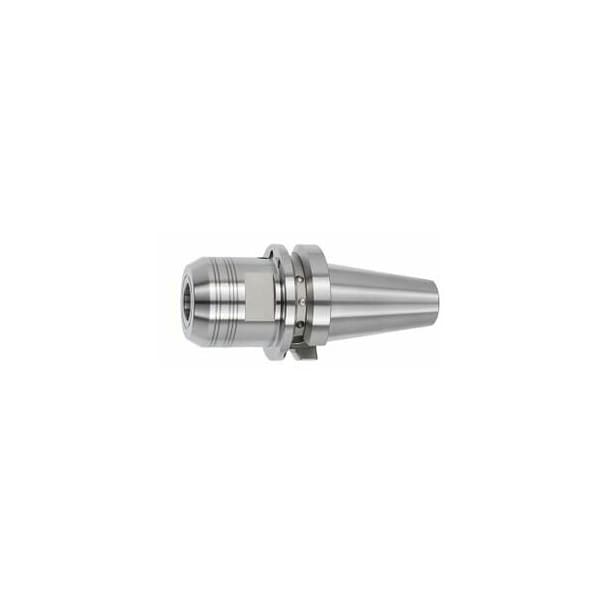

High Torque Chuck, BT 40 Short, Clamping Range: 20mm
Mfr # 303459 20
Zoro # G314825419
product price:Â $382.99
/ea
Free Shipping & Returns
Key Features
Length (In.)
45 mm
Taper
BT40
Projection
72.5 mm
Concentricity
≤ 3 µm
Clamping Dia.
20 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 303459 20
- Zoro #
- G314825419
- UPC #
- -
- Country of Origin
- China
Dimensions
- Length (In.)
- 45 mm
- Clamping Dia.
- 20 mm
- Outside Dia.
- 49.25 mm
Details
- Item
- Hydraulic clamping chuck
- Taper
- BT40
- Projection
- 72.5 mm
- Concentricity
- ≤ 3 µm
- Balance Quality
- G 2.5 at 25,000 rpm
- Suitable Reducing Adapter
- 302160; 302155; 302150; 302165
- Shape
- ADB
Description
Very high overall stiffness due to optimized design. Axial length adjustment, adjustment travel 10 mm. Advantage: Maximum transmissible torque 550 Nm, version HT High Torque, for high process reliability. Ideal damping characteristics, resulting in optimum surface finishes, increased tool life and spindle protection. Temperature resistance up to 120 DegC. Application: Especially for heavy-duty milling. Supplied with: Hexagon socket drive with T-handle. Optional extras: Pull studs PS No. 308760 308802. Note: Caution in the case of extra-long tools and TPC machining. Clamping Dia D1: 20 mm Overhang dimension A: 72.5 mm External Dia D: 49.25 mm Reach L1: 45 mm suitable reducing adapter: 302160, 302155, 302150, 302165
