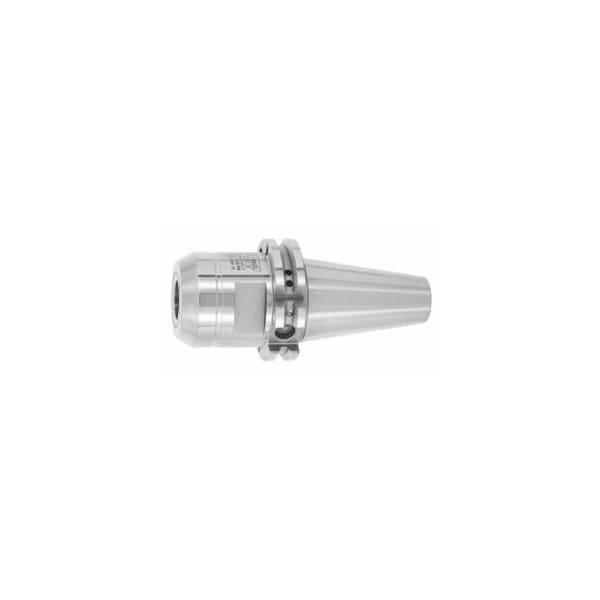

High Torque Hydraulic Chuck, Short, SK 40, Clamping Range: 20mm
Mfr # 302027 20
Zoro # G214791098
product price:Â
$
391.99
/ea
Free Shipping & Returns
Key Features
Projection
64.5 mm
Taper Size
SK40
Shape
ADB
Balance Quality
G 2.5 at 20,000 rpm
Outside Dia.
49.5 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 302027 20
- Zoro #
- G214791098
- UPC #
- -
- Country of Origin
- China
Dimensions
- Taper Size
- SK40
- Outside Dia.
- 49.5 mm
- Clamping Dia.
- 20 mm
- Length (In.)
- 45.5 mm
Details
- Projection
- 64.5 mm
- Shape
- ADB
- Balance Quality
- G 2.5 at 20,000 rpm
- Concentricity
- ≤ 3 µm
- Standards
- ISO 7388-1
- Item
- Hydraulic clamping chuck
- Suitable Reducing Adapter
- 302160; 302165; 302150; 302155
Description
Very high total rigidity due to optimized design. With RFID/Balluffchip bore. Axial length adjustment adjustment 10 mm available. Flexible due to use of reducing sleeves. Application: For drilling, reaming and for light and heavy-duty machining when milling. Maximum transmissible torque 550 Nm, version HT High Torque. Ideal damping characteristics, resulting in optimum surface finishes, increased tool life and spindle protection. Optional extras: Pull studs PS No. 308600 308806, PS wrenches No. 308820 - 308835, Reducing adapters No. 302135 302187. Note: V = Maximum adjustment range! Caution in the case of extra-long tools and TPC machining. Machining strategy: HSC Clamping Dia D1: 20 mm Overhang dimension A: 64.5 mm External Dia D: 49.5 mm Reach L1: 45.5 mm suitable reducing adapter: 302160, 302165, 302150, 302155
