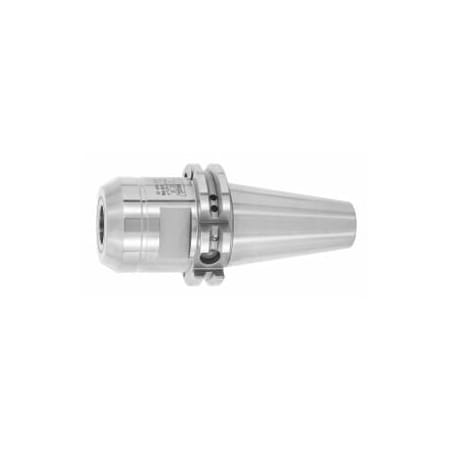

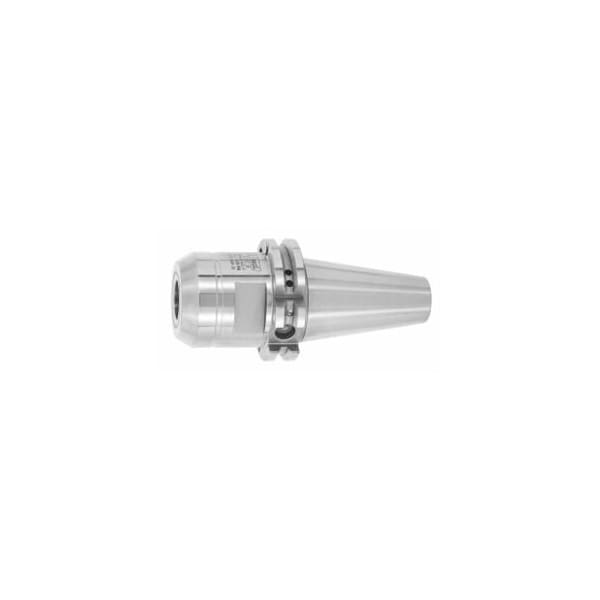

High Torque Hydraulic Chuck, SK50, Clamping Range: 20mm (Discontinued)
- Mfr # 302037 20
- Zoro # G614775544
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
302037 20
Zoro #
G614775544
UPC #
-
Country of Origin
China
Description
Very high total rigidity due to optimized design. With RFID/Balluffchip bore. Axial length adjustment adjustment 10 mm available. Flexible due to use of reducing sleeves. Application: For drilling, reaming and for light and heavy-duty machining when milling. Maximum transmissible torque 550 Nm, version HT High Torque. Ideal damping characteristics, resulting in optimum surface finishes, increased tool life and spindle protection. Optional extras: Pull studs PS No. 308600 308806, PS wrenches No. 308820 - 308835, Reducing adapters No. 302135 302187. Note: V = Maximum adjustment range! Caution in the case of extra-long tools and TPC machining. Machining strategy: HPC Clamping Dia D1: 20 mm Overhang dimension A: 64.5 mm External Dia D: 49.5 mm Reach L1: 45.5 mm suitable reducing adapter: 302160, 302165, 302150, 302155
