Shop HOLEX

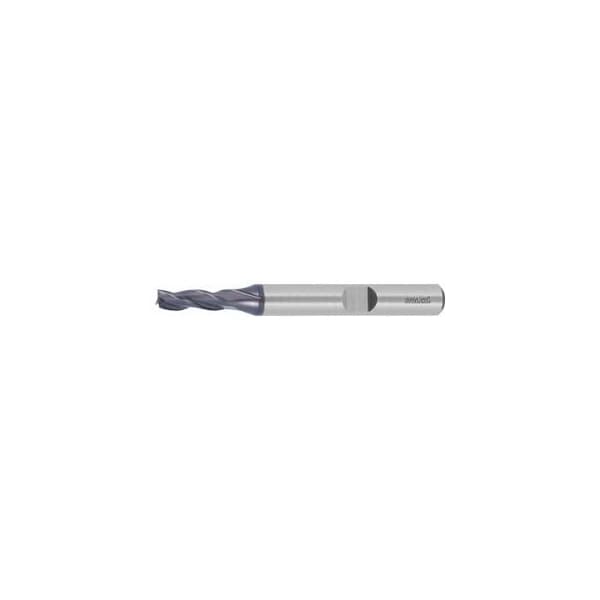

HSS-Co8 End Mills, TiAlN Coated, 2 mm

  • Mfr # 191260 2

  • Zoro # G014379946

product price:  $22.69
/ea

Key Features

Material - Machining
Cobalt High Speed Steel
Cutter Dia.
2 mm
Overall Length
51 mm
Shank Dia.
6 mm
Coolant Through
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
191260 2
Zoro #
G014379946
UPC #
-
Country of Origin
China

Dimensions

Cutter Dia.
2 mm
Overall Length
51 mm
Shank Dia.
6 mm
Length of Cut
7 mm
Depth of Cut
7 mm (side milling); 1 mm (slot milling from solid)
Min. Cutting Depth
0.01 mm
Tolerance Nominal Diameter
e8
Maximum Cutting Depth Ap Max When Slot Milling From Solid
1 mm (slot milling from solid)

Details

Material - Machining
Cobalt High Speed Steel
Coolant Through
No
Shank
DIN 1835 B to h6
Flutes
3
Type
N
Shank Tolerance
h6
Finish
TiAlN
Color Ring
without
Type of Product
End Mill
Correction Factor Fz
1.25
Direction of infeed
horizontal, oblique and vertical
Helix Angle
30 Degrees
Corner Chamfer Angle
90 Degrees
End Mill Style
Square
Standard
DIN 844 B

Description

Center cutting teeth for plunging. Eccentric relief ground. Economy version. Note: Suitable for use as a slot drill tolerance e8 or an end mill. 50 % higher metal removal rate than 2 flute slot drills. Larger flutes than multi-flute end mills good for soft material. For milling keyways.
