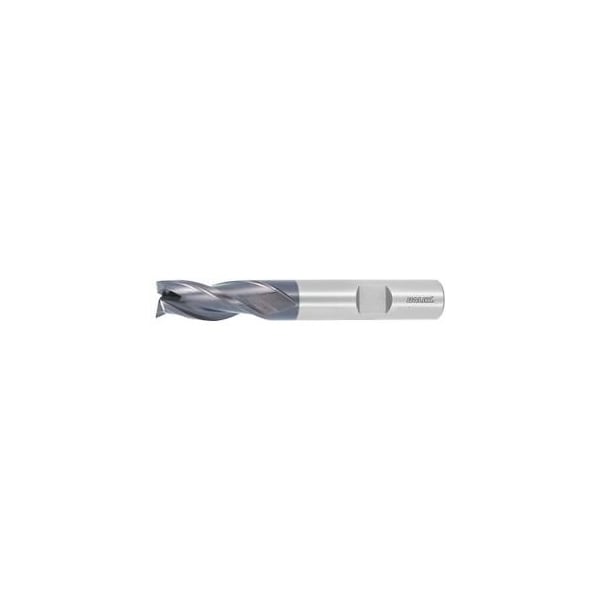

HSS-Co8 End Mills, TiAlN Coated, 6 mm
Mfr # 191260 6
Zoro # G014380362
product price: $23.25
/eaKey Features
Direction of infeed
horizontal, oblique and vertical
Min. Cutting Depth
0.01 mm
Shank Tolerance
h6
Corner Chamfer Angle
90 Degrees
Overall Length
57 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
191260 6
Zoro #
G014380362
UPC #
-
Country of Origin
China
Dimensions
Min. Cutting Depth
0.01 mm
Overall Length
57 mm
Tolerance Nominal Diameter
e8
Length of Cut
13 mm
Depth of Cut
13 mm (side milling); 6 mm (slot milling from solid)
Shank Dia.
6 mm
Cutter Dia.
6 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
6 mm (slot milling from solid)
Details
Direction of infeed
horizontal, oblique and vertical
Shank Tolerance
h6
Corner Chamfer Angle
90 Degrees
Flutes
3
Correction Factor Fz
1.25
Coolant Through
No
Finish
TiAlN
Shank
DIN 1835 B to h6
Type
N
Material - Machining
Cobalt High Speed Steel
Color Ring
without
Helix Angle
30 Degrees
Type of Product
End Mill
Standard
DIN 844 B
End Mill Style
Square
Description
Center cutting teeth for plunging. Eccentric relief ground. Economy version. Note: Suitable for use as a slot drill tolerance e8 or an end mill. 50 % higher metal removal rate than 2 flute slot drills. Larger flutes than multi-flute end mills good for soft material. For milling keyways.
