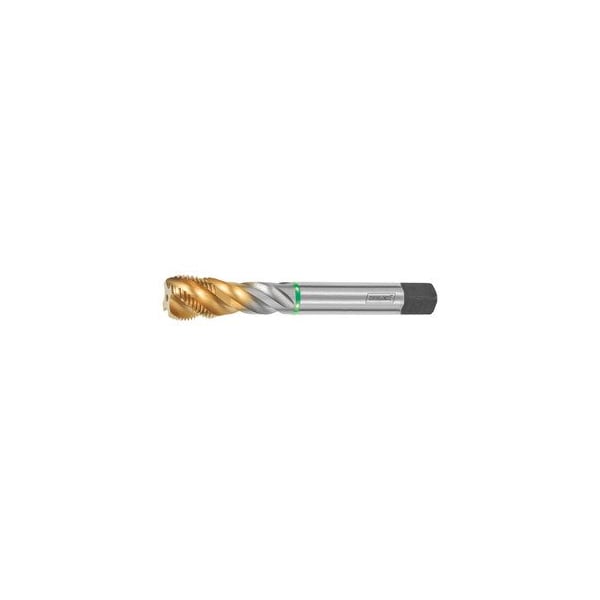

HSS-E Blind Hole Machine Tap, 5/8-18 Tap Thread Size, TiN Coated
Mfr # 138050 5/8-18
Zoro # G309574254
product price: $53.79
/eaKey Features
Shank Dia.
12 mm
Tap Material
HSS E
Standard
DIN 374
Overall Length
100 mm
Thread Direction
Right-Hand
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
138050 5/8-18
Zoro #
G309574254
UPC #
4062406374969
Country of Origin
Italy
Dimensions
Shank Dia.
12 mm
Overall Length
100 mm
Thread Length
39.7 mm
Diameter
15.88 mm
Thread Size
5/8-18 UNF
Shank Square Size
9 mm
Thread Diameter
15.88 mm
Pre-Drill Diameter
14.5 mm
Tapping Hole Diameter
14.5 mm
Pre-drill Diameter
14.5 mm
Description
HOLEX Pro Tap general-purpose tap. Sturdy design suitable for a wide spectrum of materials. Improved HSS-E tool material with low-friction TiN coating. Application: For UNF uniform fine threads ASME - B1.1. Thread type: UNF Tool material: HSS E Standard: DIN 374 Threads per inch: 18 Thread dia : 15.88 mm Overall length L: 100 mm Shank dia Ds: 12 mm Shank square : 9 mm Tapping hole dia : 14.5 mm
