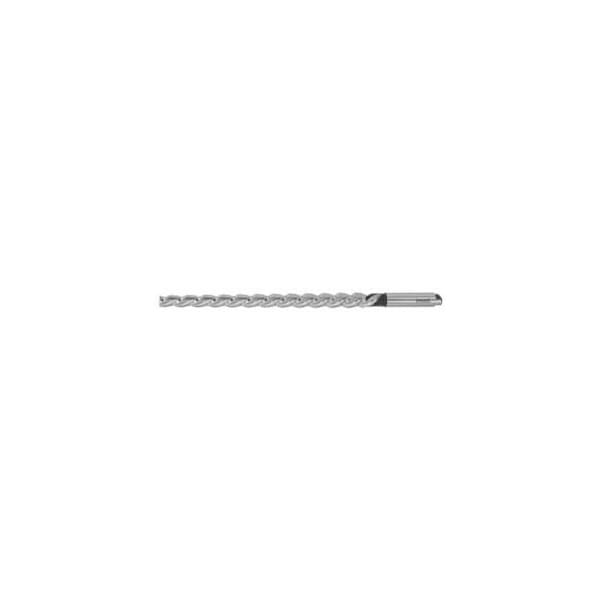

HSS-E Taper Pin Hand Reamer, Uncoated, 4 mm
Mfr # 161600 4
Zoro # G314390917
product price:Â
$
54.69
/ea
Key Features
Overall Length
112 mm
Material
HSS E
Shank Dia.
5 mm
Finish - Machining
Uncoated
Shank Type - Machining
Parallel shank to h9
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 161600 4
- Zoro #
- G314390917
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Overall Length
- 112 mm
- Shank Dia.
- 5 mm
- Size
- 4 mm
- Small End Dia.
- 3.9 mm
- Large End Dia.
- 5.26 mm
Details
- Item
- Phillips bit
- Material
- HSS E
- Finish - Machining
- Uncoated
- Shank Type - Machining
- Parallel shank to h9
Description
With 45 Deg left hand helix, evacuates swarf in cutting direction. Application: On machines for tapered through holes. The peeling twist requires removal of a thick chip pre-drilled hole must not be too large. For taper pins to ISO 2339, 8736, 8737 DIN 1, 7977, 7978, DIN 258 and 1447. Recommendation: The pre-drilled hole is best produced using a straight shank taper pin drill No. 116310. Shank: Parallel shank to h9 small Dia. D3: 3.9 mm large Dia. D2: 5.26 mm Flute length Lc: 68 mm Overall length L: 112 mm Shank Dia. Ds: 5 mm Feed f in steel < 500 N/mm2: 0.1 mm/rev.
