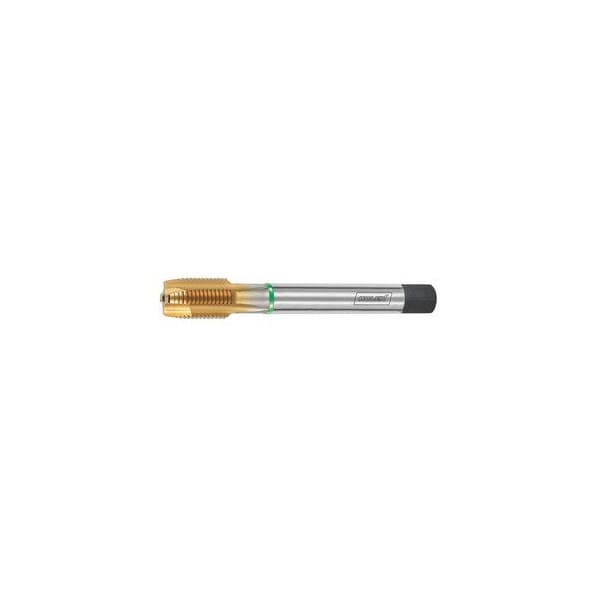

HSS-E Through Hole Machine Tap, 3/4-16 Tap Thread Size, TiN Coated
- Mfr # 133425 3/4-16
- Zoro # G709574397
product price:Â
$
78.18
/ea
Key Features
Shank Dia.
14 mm
Tap Material
HSS E
Standard
DIN 376
Overall Length
110 mm
Thread Direction
Right-Hand
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 133425 3/4-16
- Zoro #
- G709574397
- UPC #
- 4062406374389
- Country of Origin
- Italy
- Item
- Tap
- Tap Material
- HSS E
- Standard
- DIN 376
- Thread Direction
- Right-Hand
- Number of Flutes
- 3
- Application
- up to 3xD for through Holes
- Thread Type
- UNF
- Thread type
- UNF
- Number of Teeth
- 3
- Flank Angle
- 60°
- Coolant Through
- No
- Tolerance Class
- 2B
- Threads per Inch
- 16
- Finish
- TiN
- Shank Type
- Plain Shank with h9
- Series
- HOLEX Pro Tap
- Taper Lead Angle
- 8°
- Thread Pitch
- 1.587 mm
- For Hole Type
- up to 3xD for through holes
- Tool Type
- Machine tap for dynamic machining
- Taper Lead Form
- B
- Tolerance
- 2B
- Number of Clamping Slots
- 3
- Threads per inch
- 16
Description
HOLEX Pro Tap general-purpose tap. Sturdy design suitable for a wide spectrum of materials. Improved HSS-E tool material with low-friction TiN coating. Application: For UNF unified fine threads ASME - B1.1. Thread type: UNF Tool material: HSS E Standard: DIN 376 Threads per inch: 16 Thread dia : 19.05 mm Overall length L: 110 mm Shank dia Ds: 14 mm Shank square : 11 mm Tapping hole dia : 17.5 mm
