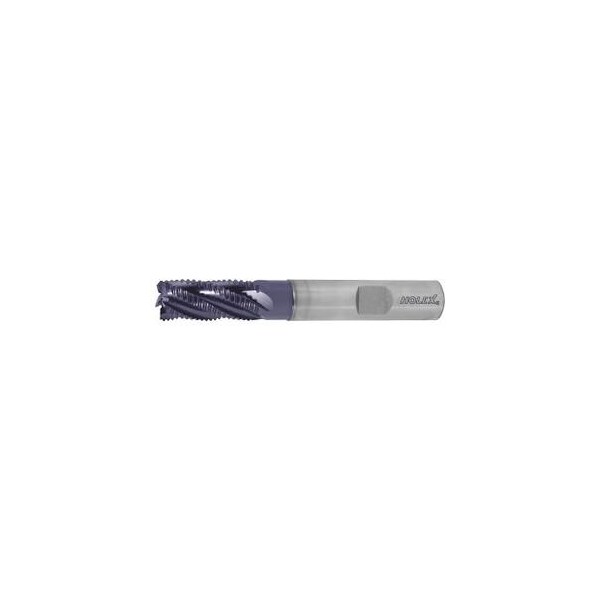

HSS-PM Roughing End Mill, TiAlN Coated, 16 mm
Mfr # 192890 16
Zoro # G314377536
product price: $94.25
/ea
Free Shipping & Returns
Key Features
Milling Dia.
16 mm
Number of Flutes
5
Length of Cut
32 mm
Shank Dia.
16 mm
Finish
TiAlN
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
192890 16
Zoro #
G314377536
UPC #
-
Country of Origin
Spain
Dimensions
Milling Dia.
16 mm
Length of Cut
32 mm
Shank Dia.
16 mm
Overall Length
92 mm
Tolerance Nominal Diameter
k12
Min. Cutting Depth
0.1 mm
Corner Chamfer Width at 45°
0.3 mm
Maximum Cutting Depth Ap Max When Side Milling
32 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
32 mm
Description
Relief ground fine pitch knuckle form profile. Center cutting teeth for plunging. Economy version.
