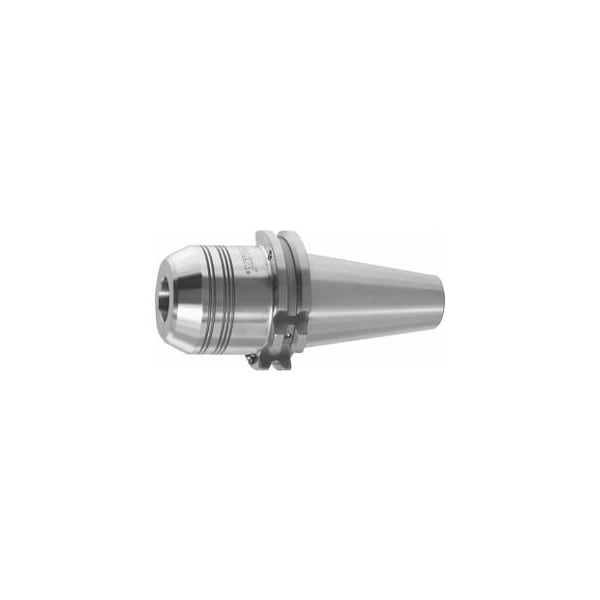

Hydraulic Chuck, Short, Form ADB, SK50, Clamping Range: 32mm
Mfr # 302025 32
Zoro # G814776716
product price:Â
$
401.99
/ea
Free Shipping & Returns
Key Features
Suitable Reducing Adapter
302180; 302175
Length (In.)
52 mm
Machining Strategy
HSC
Standards
ISO 7388-1
Shape
ADB
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 302025 32
- Zoro #
- G814776716
- UPC #
- -
- Country of Origin
- Korea, Republic of
Dimensions
- Length (In.)
- 52 mm
- Taper Size
- SK50
- Outside Dia.
- 72 mm
- Clamping Dia.
- 32 mm
Details
- Suitable Reducing Adapter
- 302180; 302175
- Machining Strategy
- HSC
- Standards
- ISO 7388-1
- Shape
- ADB
- Balance Quality
- G 6.3 at 15,000 rpm
- Projection
- 81 mm
- Concentricity
- ≤ 3 µm
- Item
- Hydraulic clamping chuck
- Coolant Through
- Yes, With Max. 80 Bar
Description
Radial run-out 3 um. With RFID / Balluffchip bore. Axial length adjustment possible, 10 mm adjustment track. Flexible due to use of reducing sleeves. Coolant pressure up to 80 bar. Application: For drilling, reaming and finish milling. Optional extras: Pull studs PS No. 308600 308806, PS wrenches No. 308810 - 308830, size 12, 20, 32: Reducing adapter No. 302135 302187. Note: V = Maximum adjustment range! Machining strategy: HSC Clamping Dia D1: 32 mm Overhang dimension A: 81 mm External Dia D: 72 mm Reach L1: 52 mm suitable reducing adapter: 302180, 302175
