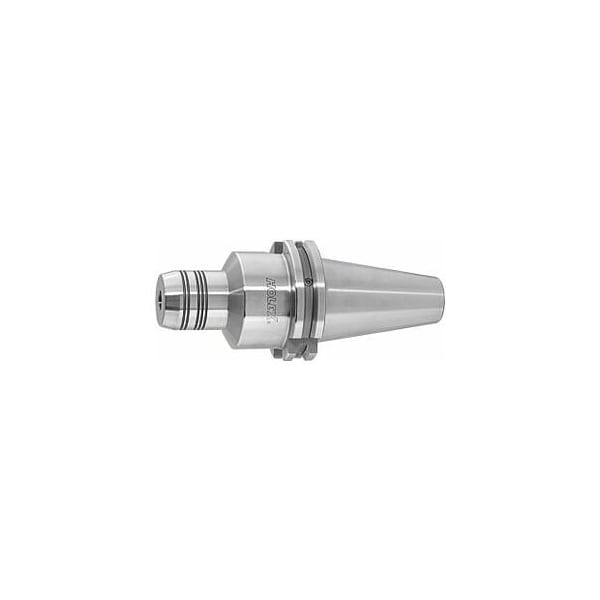

Hydraulic Chuck, Short, Slim, Form ADB, SK 40, Clamping Range: 8mm
Mfr # 302045 8
Zoro # G414776673
product price:Â
$
500.99
/ea
Free Shipping & Returns
Key Features
Machining Strategy
HSC
Adapter
SK40
Shape
ADB
Length (In.)
61.5 mm
Concentricity
≤ 3 µm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 302045 8
- Zoro #
- G414776673
- UPC #
- -
- Country of Origin
- Korea, Republic of
Dimensions
- Length (In.)
- 61.5 mm
- Dia.
- 28 mm
- Thread Size
- M6
- Clamping Dia.
- 8 mm
- Outside Dia.
- 49.5 mm
Details
- Machining Strategy
- HSC
- Adapter
- SK40
- Shape
- ADB
- Concentricity
- ≤ 3 µm
- Coolant Through
- Yes, With Max. 80 Bar
- Standards
- ISO 7388-1
- Adjustment Travel
- 10 mm
- Item
- Hydraulic clamping chuck
- Balance Quality
- G 2.5 at 20,000 rpm
- Projection
- 80.5 mm
Description
Radial run-out 3 um. With RFID / Balluffchip bore. Axial length adjustment possible, 10 mm adjustment track. Flexible due to use of reducing sleeves. Coolant pressure up to 80 bar. Application: For drilling, reaming and finish milling. Supplied with: Hexagon socket drive with T-handle. Machining strategy: HSC Clamping Dia D1: 8 mm Overhang dimension A: 80.5 mm Dia D2: 28 mm External Dia D: 49.5 mm Reach L1: 61.5 mm L2: 30 mm
